Horizontal Base Flange - Key Clamp Type 141
by Key Clamp
From £5.62
From £6.74
eachAvailable for Collection or Delivery
Store Pickup
Collect
Tue Jun 3
rdFREE
Standard
As soon as
Wed Jun 4
thFREE
Pre-Noon
As soon as
Wed Jun 4
th£10.00
Pre-10:30am
As soon as
Wed Jun 4
th£15.00
Pre-9:00am
As soon as
Wed Jun 4
th£30.00
£5 .62
£6 .74
Free delivery: Wed Jun 4th
Fastest delivery: 9am Wed Jun 4th
In Stock
Quantity:
Secure Transactions
Technical Specifications

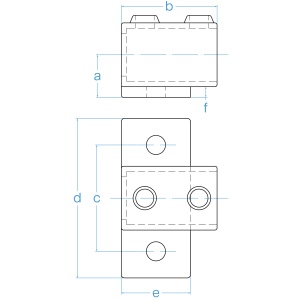

| Size | Tube | Dimensions (mm) | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Ref | O.D (mm) | a | b | c | d | e | f | Dia | Kg/Pc |
| B | 33.7 | 29 | 90 | 100 | 150 | 65 | 10 | 18 | 1.04 |
| C | 42.4 | 33 | 90 | 100 | 150 | 65 | 10 | 18 | 1.17 |
| D | 48.3 | 36 | 90 | 100 | 150 | 65 | 10 | 18 | 1.27 |
Product Description

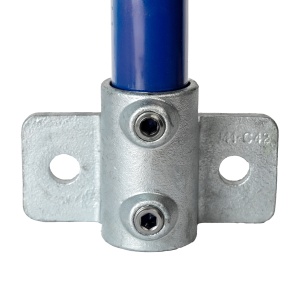

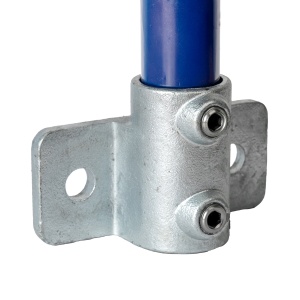

A heavier duty side palm base fitting for fixing level or sloping guardrails to walls, steps ramps etc. The flush design enables uprights to be tight to the structure. The tube is unable to pass through this fitting as supplied
Specification
Technical Data
