Hilti HUS4-Max Hybrid
Hilti HUS4-Max Hybrid

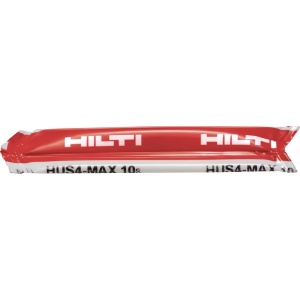

Hilti HUS4-Max Hybrid Adhesive Anchor - Resin

by Hilti
£117.60
£141.12
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
M16 Pack of 322344440209-33-34
£117.60
£141.12
cat: £117.60
cat: £141.12
2 days

Features

  • Up to 4x faster than conventional injectable mortars  two-step installation with no cleaning, shallower embedment, smaller diameters and immediate loading help you save time on every single fastening
  • Easier and faster to install compared to traditional chemical anchors  HUS4-MAX achieves the tension resistance of traditional chemical anchors, without cleaning requirements
  • Extensive applications covered combined with HUS4 screws  ETA (EAD 332795) with seismic C1 and C2 (with carbon steel HUS4 screws) and cracked and uncracked concrete and fire resistance for all steel types
  • Screw anchor can be adjusted or removed even if the capsule was used

    Applications
  • Structural baseplates to concrete using HUS4 screw anchors (size 10-16)
  • Safety relevant and designed secondary steel, platforms, staircases, balconies and industrial equipment to concrete using HUS4 screw anchors
  • Technical data available for fastening in Water Resources Act (WHG) zones for coated floors

    Specification

  • Environmental conditions - Outdoor
  • Approvals / test reports - ETA, Fire, Seismic
  • Seismic loading - Yes
  • Base materials - Concrete (uncracked)
  • Installation direction - All
  • Drilling method - Rotary
  • Tested/approved for diamond drilling - No
  • SAFEset - Yes
  • Cleaning procedures - Manual cleaning
  • Installation tools - Nuron TE 6-22 Cordless rotary hammer, SIW 6-22 ½ Cordless impact wrench
  • Removable - Yes
  • In-service temperature  range - -40 - 120 °C
  • Shelf life from date of manufacture (at 23°C and 50% relative humidity) - 18 months
  • Storage and transportation temperature range - 5 - 25 °C
  • PROFIS software - Yes
