Hilti HIT-HY 270
Hilti HIT-HY 270

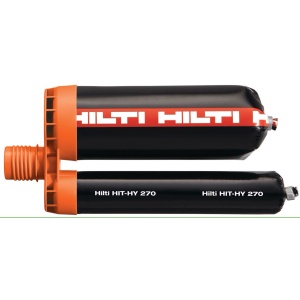

Hilti HIT-HY 270 Adhesive Anchor - Resin

by Hilti
From £48.93
From £58.72
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
330ml 2092828209-17-00
£48.93
£58.72
cat: £48.93
cat: £58.72
39
500ml 2092829209-09-34
£59.07
£70.88
cat: £59.07
cat: £70.88
12

Features

  • Seismic ETA masonry approval, new TR053 and technical data available  significantly increases your flexibility when designing steel-to-masonry connections
  • Simplify code-compliant design  design fastenings in masonry, including under seismic loads, with greater speed and ease using the PROFIS Engineering software suite
  • Compatible with HIT-SC composite sleeves for use in hollow base materials  offering greater flexibility through use of multiple sleeve combinations and also minimizing mortar waste by allowing more accurate dosing
  • On-site anchor testing available  request Hiltis on-site anchor testing service for verification of both tensile and shear loads in both horizontal and vertical directions

    Package Content
  • 1 x Foil Pack
  • 2 x Mixer
  • 1 x Extension Nozzle

    Applications
  • Fastening structural steel to hollow and solid masonry
  • Cost-effective seismic retrofitting and structural strengthening of old masonry walls
  • Refurbishment and renovations
  • Heavy bracing of fixtures to insulated materials  such as sunshades
  • Fastening glass balustrade assemblies

    Specification

  • Base materials - Masonry (hollow), Masonry (solid)
  • Approvals / test reports - ETA, Fire
  • Fire resistance - Yes
  • PROFIS software - Yes
  • Clean-Tec - No
  • Anchoring elements - HIT-IC internally-threaded rods, HIT-SC mesh sleeves, HIT-S mesh sleeves, HIT-V threaded rods
  • Environmental conditions - Dry indoor, Indoor with temporary condensation, Outdoor (more than 1 km from coast)
  • Cleaning procedures - Manual cleaning
  • Storage and transportation temperature range - 5 - 25 °C
  • In-service temperature  range - -40 - 80 °C
  • Shelf life from date of manufacture (at 23°C and 50% relative humidity) - 12 months
