Hilti HIT-HY 200-A V3
Hilti HIT-HY 200-A V3

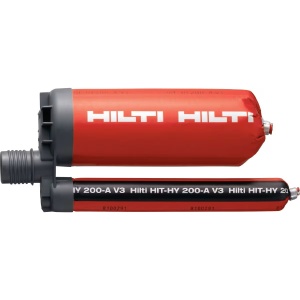

Hilti HIT-HY 200-A V3 Adhesive Anchor - Resin

by Hilti
From £42.46
From £50.95
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
330ml 2378171208-62-54
£42.46
£50.95
cat: £42.46
cat: £50.95
38
500ml 2378172209-16-92
£54.05
£64.86
cat: £54.05
cat: £64.86
71

Features

  • Faster curing - optimised for anchoring applications in dry concrete, wet concrete or water-filled drill holes, with a wide working temperature range (-10°C to +40°C).
  • Easier to specify and order  use PROFIS Engineering to design steel-to-concrete or concrete-to-concrete connections according to EC2, TR069, TR082 or the Hilti Design Method
  • Versatile adhesive anchor for wide-ranging conditions - approved for hammer-drilled, hollow-drilled and diamond-cored holes (with TE-YRT).
  • Faster, simpler and safer installations  combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
  • Extensive approvals available - including ETA for cracked and uncracked concrete, seismic C2, fire resistance data, and with service life up to 100 years in rebar and anchor

    Package Content
  • 1 x Foil Pack
  • 2 x Mixer
  • 1 x Extension Nozzle

    Applications
  • Anchoring structural steel connections (e.g. steel columns, beams) to concrete
  • Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
  • Concrete connections designed both as rigid and as simply supported
  • Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
  • Structural concrete connections with post-installed rebar

    Specification

  • Base materials - Concrete (cracked), Concrete (uncracked)
  • Approvals / test reports - ETA, ICC-ES report (concrete)
  • PROFIS software - Yes
  • Clean-Tec - No
  • Anchoring elements - HAS threaded rods, HAS-U threaded rods, HIT-V threaded rods, Rebar
  • Environmental conditions - Indoor with temporary condensation, Outdoor (more than 1 km from coast)
  • Cleaning procedures - Automatic cleaning (SafeSet hollow drill bit), Compressed-air cleaning, Manual cleaning
  • Storage and transportation temperature range - 5 - 25 °C
  • In-service temperature  range - -40 - 120 °C
  • Shelf life from date of manufacture (at 23°C and 50% relative humidity) - 12 months
  • Product class - Ultimate
