Drop In Anchor - Fischer EA II Electro Zinc Plated

by Fischer Fixings
£21.97
£26.36
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
M8 x 40mm 048284206-98-13
£21.97
£26.36
cat: £21.97
cat: £26.36
2 days

Product Description

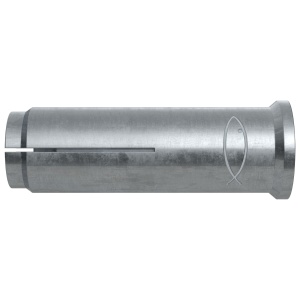

The fischer Hammerset anchor EA II is an internal threaded anchor made of zinc-plated steel. The Hammerset anchor is set flush to the surface of the anchoring base using the hammer. With the setting tool EHS Plus or the machine setting tool EMS the sleeve is expanded by driving in the internal rod and expands against the drill hole wall. For correct expansion to take place, no torque must be applied to the screw or the threaded rod. The fischer Hammerset anchor EA II is ideal for fixing sprinkler systems, gratings, and consoles in internal areas with approval.

Features


  • Simple Hammerset installation: no slippage during assembly due to the pronounced edge on the anchor sleeve.
  • Use of standard metric screws and threaded rods lowers complexity.
  • Power-saving series installation with machine setting tool EA II S-SDS.
  • Visual control due to embossing.
  • ETA approval for multiple fixings.

    Advantages
  • The embossed edge prevents the anchor sleeve from slipping, thus allowing trouble-free hammerset installation.
  • The metric internal thread allows for the use of standard screws or threaded rods for ideal adaptation in line with the intended use.
  • The machine setting tool EMS allows for effortless installation, particularly in the case of series installations.
  • The embossing that is applied when expanding with the Setting tool EHS Plus offers a simple control of the anchoring and provides increased safety.
  • Fixing point on hef 25 mm against inadvertent of the anchor before expansion.
  • Ideal for applications with high load requirements.

    Specification


    Applications

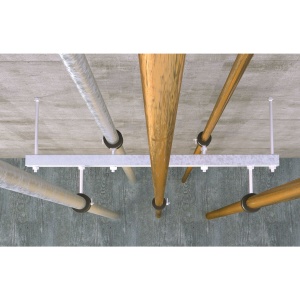

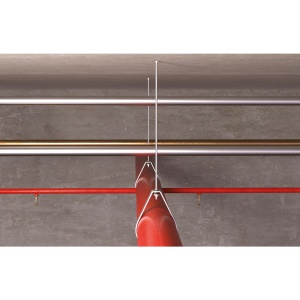

  • Sprinkler systems
  • Steel constructions
  • Machines
  • Consoles
  • Shuttering props

    Building materials

     Suitable for:
  • Concrete C20/25 to C50/60, cracked, for the multiple fixings of non-load-bearing systems
  • Concrete C20/25 to C50/60, non-cracked
  • Concrete C12/15
  • Natural stone with dense structure

    You can find detailed information on building materials in the registration document.

    Approvals
  • ETA-07/0135
  • ETA-07/0142
  • DoP No. 0756-CPD-0332
  • DoP No. 0292
  • DoP No. 0291

    Functionality
  • The EA II is suitable for pre-positioned installation.
  • Position the hammerset anchor in the drill hole and drive in flush to the surface of the anchor base using the hammer.
  • The sleeve is then expanded by driving in the internal bolt with the EHS Plus setting tool (alternative: EMS machine setting tool), and expanded against the drill hole wall.
  • The setting tools must sit on the rim of the anchor to ensure correct expansion.
