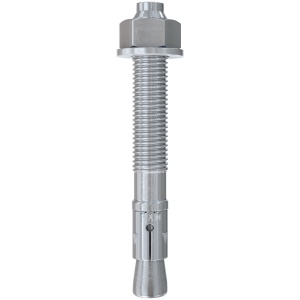

The fischer bolt anchor FXA is the cost-efficient fixing solution for mid and low load performance in non-cracked concrete. The FXA is offered from M8 - M16 in zinc-plated and stainless steel.
Features
Advantages
ETA approval Option 7 for non-cracked concrete ensure a high quality standard.
The standard anchorage depth of FXA achieves the maximum loadbearing capacities so fewer fixing points and smaller anchor plates are required.
The drive-in pin protects the thread from damage and ensures a faster installation and dismantling of the attachment.
The full range M8 - M16 in zinc plated and stainless steel allows a wide field of indoor and outdoor applications.
Quick and easy installation is possible with the help of the FA-ST II setting tool.
Specification
Applications

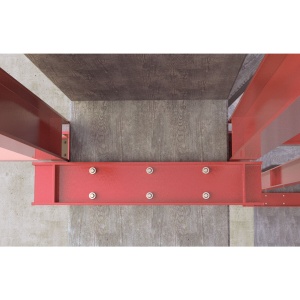

Steel constructions

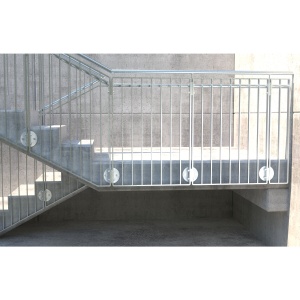

Guard rails
Consoles
Ladders
Cable trays
Staircases
Gates
Building materials
Approved for:
Concrete C20/25 to C50/60, non-cracked
You can find detailed information on building materials in the registration document.
Approvals
ETA-13/0772
DoP No. 0193
Functionality
The FXA is suitable for pre-positioned and push-through installation.
When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall.
The anchor is set in line with the approval once the preset installation torque is achieved.
In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.
