Type FF - Floorfast - BZP
Type FF - Floorfast - BZP
Type FF - Floorfast - BZP
Type FF - Floorfast - BZPType FF - Floorfast - BZPType FF - Floorfast - BZP

Type FF - Floorfast - BZP Lindapter Floor Fixing

by Lindapter
From £5.70
From £6.84
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
M8 (4.5-12mm)FF08193-60-53
£6.47
£7.76
cat: £6.47
cat: £7.76
201
M10 (5-12mm)FF10193-60-61
£6.47
£7.76
cat: £6.47
cat: £7.76
610
M12 (6-12mm)FF12193-60-79
£5.70
£6.84
cat: £5.70
cat: £6.84
124

Product Description

The Lindapter Floorfast is an innovative and easy to install clamp for securing chequer plate flooring to supporting steelwork without the need to weld or drill. Using Floorfast, maintenance walkway can be installed quickly by a single person from above, without the need to access the underside of the flooring. The Floorfast carries Lloyd's Register Type Approval, in respect of its resistance to shock and vibration. The product consists of a malleable iron body casting with a countersunk socket screw. The eccentric stepped web of the casting allows it to lock under the steel, providing full face contact when torque is applied. For thicker flanges packing pieces can be supplied. Fast, cost effective installation. No welding or drilling. No hot work permits required Suitable for a range of floorplate and flange thicknesses. Easy to install, from above, with standard hand tools. Lloyd's Register Type Approval Testing: Vibration: 500,000+ cycles at resonant frequency (up to 4.6g) without any torque reduction or slippage. Shock: Up to 20g acceleration from a 30ms shock pulse without any torque reduction or movement.

Features

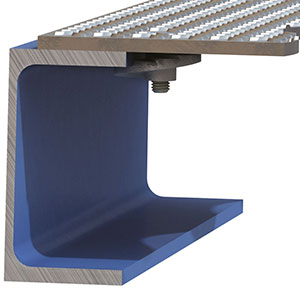

  • The Lindapter Floorfast is an innovative and easy to install clamp for securing chequer plate flooring to supporting steelwork without the need to weld or drill.
  • Using Floorfast, maintenance walkway can be installed quickly by a single person from above, without the need to access the underside of the flooring. The Floorfast carries Lloyds Register Type Approval, in respect of its resistance to shock and vibration

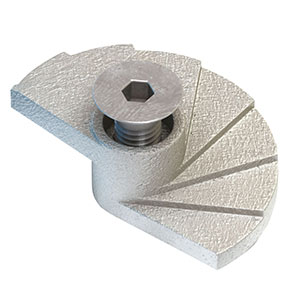

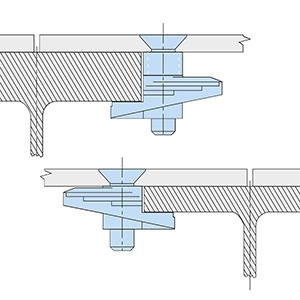

  • The product consists of a malleable iron body casting with a countersunk socket screw. The eccentric stepped web of the casting allows it to lock under the steel, providing full face contact when torque is applied. For thicker flanges packing pieces can be supplied
  • Fast, cost effective installation
  • No welding or drilling
  • No hot work permits required
  • Suitable for a range of floorplate and flange thicknesses
  • Easy to install, from above, with standard hand tools
  • Lloyds Register Type Approval Testing: Vibration: 500,000+ cycles at resonant frequency (up to 4.6g) without any torque reduction or slippage. Shock: Up to 20g acceleration from a 30ms shock pulse without any torque reduction or movement
