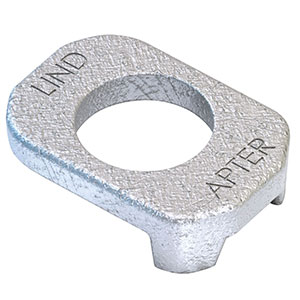

Type AF - Adapter Washer - HDG
Type AF - Adapter Washer - HDG

Type AF - Adapter Washer - HDG Lindapter Girder Clamp

by Lindapter
From £2.10
From £2.52
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
M12 x 5mm AFW12193-60-04
£3.09
£3.71
cat: £3.09
cat: £3.71
185
M16 x 5mm AFW16193-60-12
£2.10
£2.52
cat: £2.10
cat: £2.52
242
M20 x 6mm AFW20193-60-20
£3.55
£4.26
cat: £3.55
cat: £4.26
234
M24 x 10mm AFW24193-60-38
£5.06
£6.07
cat: £5.06
cat: £6.07
122

Product Description

Adapter washer used to fill the recess of the type AF high Friction Clamp. Additionally it features two projections which, when the AFW is inverted, will captivate the larger hexagons of 10.9 bolts.(M12 to M20 only). Note: The Type AFW is used to fill the recess in the Type AF to convert it into a flat top clamp to enable the bolt head or nut to be rotated. The Type AFW is also required when using pre-loadable bolts to BS EN 14399 due to their larger hexagon heads.

Features

  • Adapter washer used to fill the recess of the type AF high Friction Clamp. Additionally it features two projections which, when the AFW is inverted, will captivate the larger hexagons of 10.9 bolts.(M12  M20 only).
  • Note: The Type AFW is used to fill the recess in the Type AF to convert it into a flat top clamp to enable the bolt head or nut to be rotated. The Type AFW is also required when using pre-loadable bolts to BS EN 14399 due to their larger hexagon heads.
