Type HBCSK - Countersunk - BZP
Type HBCSK - Countersunk - BZP
Type HBCSK - Countersunk - BZPType HBCSK - Countersunk - BZP

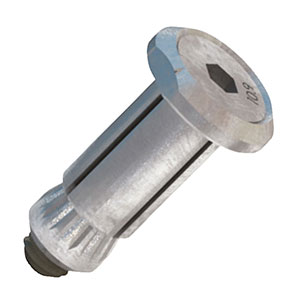

Lindapter - Type HBCSK - Hollo-Bolt - Countersunk Head

by Lindapter
From £9.49
From £11.39
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
M8 x 50mm (3-22mm)HBCSK08-1193-23-91
£9.49
£11.39
cat: £9.49
cat: £11.39
270
M8 x 70mm (22-41mm)HBCSK08-2193-24-09
£13.30
£15.96
cat: £13.30
cat: £15.96
92
M8 x 90mm (41-60mm)HBCSK08-3193-24-17
£14.31
£17.17
cat: £14.31
cat: £17.17
28
M10 x 50mm (3-22mm)HBCSK10-1193-24-25
£11.07
£13.28
cat: £11.07
cat: £13.28
157
M10 x 70mm (22-41mm)HBCSK10-2193-24-33
£13.89
£16.67
cat: £13.89
cat: £16.67
16
M10 x 90mm (41-60mm)HBCSK10-3193-24-41
£15.70
£18.84
cat: £15.70
cat: £18.84
40
M12 x 55mm (3-25mm)HBCSK12-1193-24-58
£13.31
£15.97
cat: £13.31
cat: £15.97
836
M12 x 80mm (25-47mm)HBCSK12-2193-24-66
£17.05
£20.46
cat: £17.05
cat: £20.46
176
M12 x 100mm (47-69mm)HBCSK12-3193-24-74
£19.13
£22.96
cat: £19.13
cat: £22.96
3
M16 x 70mm (12-29mm)HBCSK16-1193-24-82
£17.39
£20.87
cat: £17.39
cat: £20.87
462
M16 x 100mm (29-50mm)HBCSK16-2193-24-90
£18.88
£22.66
cat: £18.88
cat: £22.66
907
M16 x 120mm (50-71mm)HBCSK16-3193-25-08
£21.24
£25.49
cat: £21.24
cat: £25.49
34

Product Description

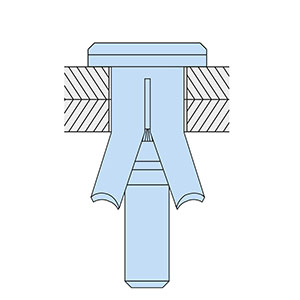

Lindapter is the world's leading innovator in steelwork clamping systems. Their unique clamping systems eliminate the requirement to drill or weld steel. When compared to traditional steel clamping / connection methods, Lindapter provides faster installation, significantly reduced costs and preserves the integrity of the steelwork. Lindapter clamping systems are suitable for a variety of steel work ranging from steel beams to steel hollow sections. The 'Countersunk Head' version of the Hollo-Bolt is a suitable cavity fixing for hollow sections or conventional steelwork where access is available from one side only. It also ensures that the fixing protrusion from the steelwork is kept to a minimum whilst still using a plain drilled hole in the supporting section and the outer plate / bracket.

Features

  • Lindapter expansion bolts require access to only one side of the Structural Hollow Section (SHS), and offer a faster alternative to welding or through-bolting, enabling contractors to reduce construction time and labour costs.
  • The Hollo-Bolt is independently approved for primary structural connections.
  • Installation is quickly carried out by inserting into pre-drilled steelwork and tightening with a torque wrench. Independent approvals include CE Mark, DIBt, TÜV and ICC-ES seismic accreditation.
  • For square, rectangular and circular hollow sections.
  • Fast, cost saving installation from one side.
  • High resistance to shear and tension.
  • Patented High Clamping Force design.
  • A range of head types for architectural finishes.
  • Sizes M16 and M20, known as the Hollo-Bolt (HCF), feature a High Clamping Force mechanism to produce three times more clamping force than the same sized product without the mechanism.
