Type HB - Hexagonal - HDG
Type HB - Hexagonal - HDG
Type HB - Hexagonal - HDG
Type HB - Hexagonal - HDGType HB - Hexagonal - HDGType HB - Hexagonal - HDG

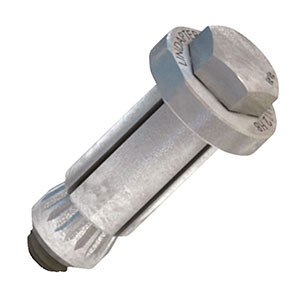

Lindapter - Type HB - Hollo-Bolt - Hex Head - HDG Finish

by Lindapter
From £6.12
From £7.34
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
M8 x 50mm (3-22mm)HB08-1HDG193-21-93
£6.12
£7.34
cat: £6.12
cat: £7.34
235
M8 x 70mm (22-41mm)HB08-2HDG193-22-19
£10.96
£13.15
cat: £10.96
cat: £13.15
144
M8 x 90mm (41-60mm)HB08-3HDG193-22-27
£11.16
£13.39
cat: £11.16
cat: £13.39
42
M10 x 55mm (3-22mm)HB10-1HDG193-22-35
£7.07
£8.48
cat: £7.07
cat: £8.48
1000+
M10 x 70mm (22-41mm)HB10-2HDG193-22-43
£13.49
£16.19
cat: £13.49
cat: £16.19
79
M10 x 90mm (41-60mm)HB10-3HDG193-22-50
£14.76
£17.71
cat: £14.76
cat: £17.71
24
M12 x 60mm (3-25mm)HB12-1HDG193-23-00
£9.46
£11.35
cat: £9.46
cat: £11.35
1000+
M12 x 80mm (25-47mm)HB12-2HDG193-23-18
£15.62
£18.74
cat: £15.62
cat: £18.74
273
M12 x 100mm (47-69mm)HB12-3HDG193-23-26
£17.21
£20.65
cat: £17.21
cat: £20.65
34
M16 x 75mm (12-29mm)HB16-1HDG193-23-34
£12.62
£15.14
cat: £12.62
cat: £15.14
651
M16 x 100mm (29-50mm)HB16-2HDG193-23-42
£17.31
£20.77
cat: £17.31
cat: £20.77
117
M16 x 120mm (50-71mm)HB16-3HDG193-23-59
£31.23
£37.48
cat: £31.23
cat: £37.48
8
M20 x 90mm (12-34mm)HB20-1HDG193-23-67
£26.88
£32.26
cat: £26.88
cat: £32.26
118
M20 x 120mm (34-60mm)HB20-2HDG193-23-75
£39.88
£47.86
cat: £39.88
cat: £47.86
100
M20 x 150mm (60-80mm)HB20-3HDG193-23-83
£42.84
£51.41
cat: £42.84
cat: £51.41
28

Product Description

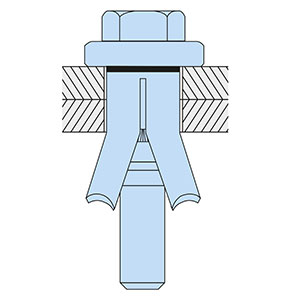

The Lindapter type HB Hollo Bolt with hexagonal head is the Original Expansion Bolt for Structural Steel. Suitable for hollow sections, tubes and where access is only available from one side. The Hollo-Bolt (hexagonal head, HDG) is approved by ICC-ES to resist seismic loads and wind loads in all seismic design categories (A to F). For corrosion protection, the Hollo-Bolt comes with additional JS500 protection as standard or hot dip galvanised. Sizes M16 and M20 have a patented High Clamping Force (HCF) mechanism for optimised clamping force. Speedy installation with standard tools. This CE approved blind fixing was awarded the Design Council's Millennium Product status for innovation in the year 2000.

Features

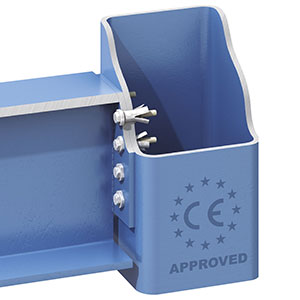

  • Lindapter expansion bolts require access to only one side of the Structural Hollow Section (SHS), and offer a faster alternative to welding or through-bolting, enabling contractors to reduce construction time and labour costs.
  • The Hollo-Bolt is independently approved for primary structural connections.
  • Installation is quickly carried out by inserting into pre-drilled steelwork and tightening with a torque wrench. Independent approvals include CE Mark, DIBt, TÜV and ICC-ES seismic accreditation.
  • For square, rectangular and circular hollow sections.
  • Fast, cost saving installation from one side.
  • High resistance to shear and tension.
  • Patented High Clamping Force design.
  • A range of head types for architectural finishes.
  • Sizes M16 and M20, known as the Hollo-Bolt (HCF), feature a High Clamping Force mechanism to produce three times more clamping force than the same sized product without the mechanism.
