Fischer - FIS VL 410 C
Fischer - FIS VL 410 C
Fischer - FIS VL 410 CFischer - FIS VL 410 C

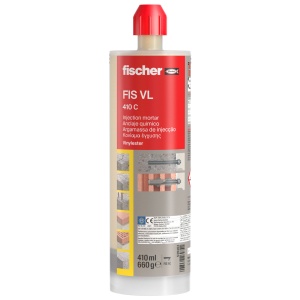

Fischer Injection Mortar FIS VL 410 C - Vinylester Resin

by Fischer Fixings
£6.85
£8.22
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
410ml 539463186-43-47
£6.85
£8.22
cat: £6.85
cat: £8.22
339

Product Description

The fischer injection mortar FIS VL is a vinyl ester hybrid mortar with approval for fixing standard applications in cracked concrete and masonry. The FIS VL is processed with the approved system components fischer threaded rod FIS A and fischer internal-threaded anchor RG M I indoors and outside. The temperature resistance of the FIS VL injection mortar of -40 Deg C to +120 Deg C allows for a solid load level even when subjected to high temperature demands, thus providing great flexibility.

Features


Advantages

  • The FIS VL is approved for use in cracked concrete and masonry, and achieves a high load-bearing capacity in these conditions.
  • The temperature resistance of the FIS VL injection mortar of -40 °C to +120 °C allows for a solid load level even when subjected to high temperature demands, thus providing great flexibility.

    Specification


    Applications

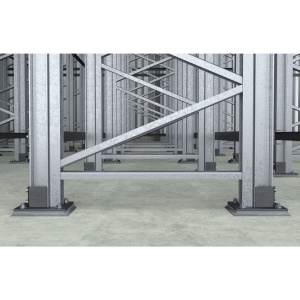

  • Steelwork constructions
  • Timber constructions
  • Guard rails
  • Façades
  • Staircases
  • Steel brackets
  • Machines
  • Masts
  • Awnings
  • Canopies
  • Gates
  • Consoles
  • Pipelines
  • Gratings
  • Satellite antennas

    Building materials

     Approved for anchorings in:

  • Concrete C20/25 to C50/60, cracked
  • Hollow blocks made from lightweight concrete
  • Vertically perforated brick
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Solid brick
  • Rebar connections
  • Aerated concrete

    Also suitable for:

  • Concrete C12/15
  • Hollow blocks made from concrete

    You can find detailed information on building materials in the registration document.

    Approvals
  • ETA-15/0263
  • ETA-15/0539
  • ETA-10/0352
  • DoP No. 0195
  • DoP No. 0276
  • DoP No. 0342
  • GS 3.2/18-159-1-r1
  • 21909_2  abridged version

    Functionality
  • The FIS VL is a 2-component injection mortar based on vinyl ester.
  • Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
  • The mortar is extruded bubble free from the drill hole base.
  • The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
  • The 410 ml coaxial cartridges can be easily used with the fischer FIS AC dispenser.
  • Partially used cartridges can be reused by changing the static mixer.
