Delta Protekt
Delta Protekt

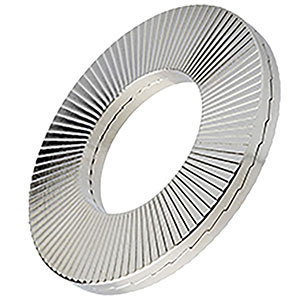

Locking Washer Delta Protekt Heico-Lock

by Heico
From £23.41
From £28.09
per 100
Size/Model No. Stock No. Price per hundred Available
Stock
Quantity
M6 H-HLS-6183-71-45
£23.41
£28.09
cat: £23.41
cat: £28.09
564
M24 H-HLS-24183-72-02
£174.80
£209.76
cat: £174.80
cat: £209.76
51

Product Description

Heico-Lock washer system delivers superior bolt fastening in demanding applications. Pre-assembled wedge locking washers lock bolted joints using tension as opposed to friction. Provides ultimate peace of mind for all your fastening applications. The internal inclined cams and external radial teeth combine to lock bolted joints in place. By using the tension in the bolt as opposed to friction a consistent clamping force is maintained.

Features

  • Heico-Lock washer system delivers superior bolt fastening in demanding applications
  • Pre-assembled wedge locking washers lock bolted joints using tension as opposed to friction
  • Provides ultimate peace of mind for all your fastening applications
  • The internal inclined cams and external radial teeth combine to lock bolted joints in place
  • By using the tension in the bolt as opposed to friction a consistent clamping force is maintained

Dimensions

M : 6 : --------------M6--------------

a : 1.6 : Washer Thickness

b : 12 : Width Across Flat

M : 8 : --------------M8--------------

a : 1.6 : Washer Thickness

b : 16 : Width Across Flat

M : 10 : --------------M10-------------

a : 2 : Washer Thickness

b : 20 : Width Across Flat

M : 12 : --------------M12-------------

a : 2.5 : Washer Thickness

b : 24 : Width Across Flat

M : 14 : --------------M14-------------

a : 2.5 : Washer Thickness

b : 28 : Width Across Flat

M : 16 : --------------M16-------------

a : 3 : Washer Thickness

b : 30 : Width Across Flat

M : 18 : --------------M18-------------

a : 3 : Washer Thickness

b : 34 : Width Across Flat

M : 20 : --------------M20-------------

a : 3 : Washer Thickness

b : 37 : Width Across Flat

M : 24 : --------------M24-------------

a : 4 : Washer Thickness

b : 44 : Width Across Flat

M : 30 : --------------M30-------------

a : 4 : Washer Thickness

b : 56 : Width Across Flat

M : 33 : --------------M33-------------

a : 5 : Washer Thickness

b : 60 : Width Across Flat

M : 36 : --------------M36-------------

a : 5 : Washer Thickness

b : 66 : Width Across Flat

M : 39 : --------------M39-------------

a : 6 : Washer Thickness

b : 72 : Width Across Flat
