Fischer - Nut - FSL B Type
Fischer - Nut - FSL B Type

Sleeve Anchor - BZP - Fischer - Nut - FSL B Type

by Fischer Fixings
From £10.71
From £12.85
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
8 x 65mm 8/3793805186-62-19
£10.71
£12.85
cat: £10.71
cat: £12.85
19
8 x 85mm 08/5593806187-05-34
£13.77
£16.52
cat: £13.77
cat: £16.52
2 days
10 x 77mm 10/3593808186-27-62
£22.82
£27.38
cat: £22.82
cat: £27.38
49
10 x 97mm 10/59B93809186-62-01
£32.47
£38.96
cat: £32.47
cat: £38.96
2 days
12 x 99mm 12/5193812182-59-67
£42.09
£50.51
cat: £42.09
cat: £50.51
2
12 x 129mm 12/8193813186-39-84
£75.99
£91.19
cat: £75.99
cat: £91.19
20
16 x 140mm 16/8093817190-65-44
£90.94
£109.13
cat: £90.94
cat: £109.13
2 days

Product Description

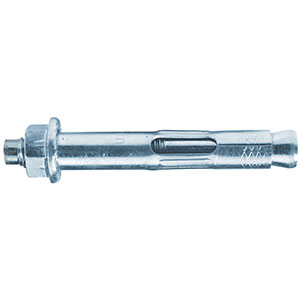

The fischer sleeve anchor FSL is an internal threaded anchor made from zinc-plated steel. Thanks to its high shear load resistance, the FSL is ideal for the anchoring of structural and temporary loads in non-cracked concrete. The variants with screws and hexagonal heads enable use for anchorings with no bolt projection. The sleeve anchor is installed in a time-saving push-through installation. During the installation, the cone is pulled into the expansion sleeve and expands it against the drill hole wall. The anchor is dismantled by means of a surface-flush removal in the case of temporary anchors.

Features


Advantages

  • Easy to insert into the drill hole thanks to undersize
  • High shear loads
  • Removable

    Specification


    Applications

  • Handles
  • Consoles
  • Ladders
  • Cable trays
  • Gates
  • Façades
  • Temporary or structural fixings

    Building materials

     Suitable for:

  • Concrete  C12/15

    You can find detailed information on building materials in the registration document.

    Functionality
  • Create and clean the drill hole.
  • Install the sleeve anchor through the fixture in a push-through installation process.
  • Apply the defined torque.
