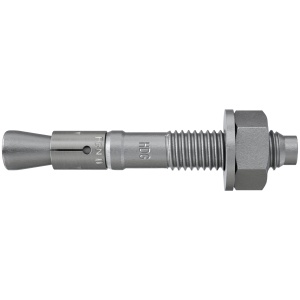

Fischer FBN II - Hot Dipped Galv Through Bolt

by Fischer Fixings
From £83.01
From £99.61
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
M8 x 55 K 508012180-57-04
£83.01
£99.61
cat: £83.01
cat: £99.61
2 days
M10 x 70 K 508013180-57-20
£103.78
£124.54
cat: £103.78
cat: £124.54
2 days
M12 x 50mm 507592202-87-93
£167.70
£201.24
cat: £167.70
cat: £201.24
2 days
10 x 86mm 507579207-37-24
£196.44
£235.73
cat: £196.44
cat: £235.73
2 days
M10 x 105mm 30mm507580212-91-46
£132.93
£159.52
cat: £132.93
cat: £159.52
26
M16 x 218mm 100mm507554212-91-38
£606.18
£727.42
cat: £606.18
cat: £727.42
2 days

Product Description

The fischer bolt anchor FBN II K is a steel anchor for cost-effective fixings in non-cracked concrete. The short version is suitable for pre-positioned installation and push-through installation. The bolt anchor is made of hot-dipped steel and is recommended for railings, handrails or consoles.

Features

Advantages The standard anchorage depth achieves the maximum load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required. The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility. The first bolt anchor with variable working life covers the usage of bolt anchors in wet conditions and outdoor areas. The long thread balances component tolerances and stand-off installations, and thus increases flexibility. Fewer hammer blows and the minimal torque slippage allow for a noticeably simpler assembly. The drive-in pin protects the threaded screw from damage, and as such ensures a faster installation and dismantling of the fixture.

Specification

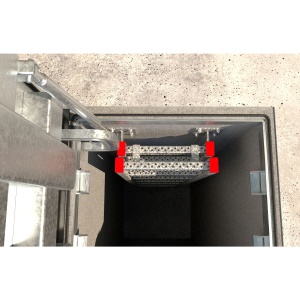

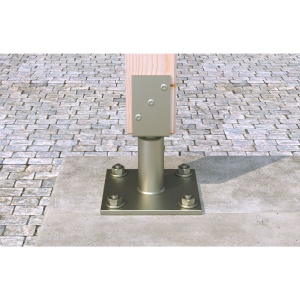

Applications

  • Steel constructions
  • Guard rails
  • Consoles
  • Ladders
  • Machines
  • Gates
  • Façades

    Building materials

     Approved for:

  • Concrete C20/25 to C50/60, non-cracked

    Also suitable for:

  • Concrete C12/15
  • Natural stone with dense structure

    You can find detailed information on building materials in the registration document.

    Approvals
  • ETA-07/0211
  • ETA-18/0101
  • DoP No. 0098
  • DoP No. 0268

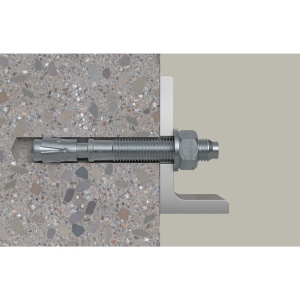

    Functionality
  • The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
  • Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
  • When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
  • The head embossing offers a simple control of the anchoring.
  • In the case of series installation, we recommend using the FABS bolt anchor setting tool.
