M30 - A2  - 304 Grade - DIN933
M30 - A2  - 304 Grade - DIN933

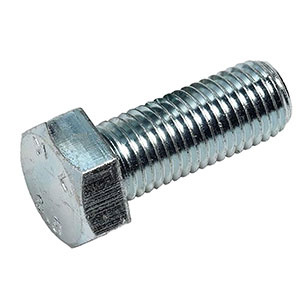

M30 - A2 - 304 Grade - DIN933 Stainless Setscrews

by Quality 304
£401.12
£481.34
per 100
Size/Model No. Stock No. Price per hundred Available
Stock
Quantity
60mm 175-81-76
£401.12
£481.34
cat: £401.12
cat: £481.34
4 days

Product Description

Smooth shoulder beyond the thread. Thread lengths for bolts up to 125mm is twice the thread diameter plus 6mm. Over 125mm and up to 200mm is twice the thread diameter plus 12mm and over 200mm is twice the thread diameter plus 25mm.

Features

  • Smooth shoulder beyond the thread. Thread lengths for bolts up to 125mm is twice the thread diameter plus 6mm. Over 125mm and up to 200mm is twice the thread diameter plus 12mm and over 200mm is twice the thread diameter plus 25mm.

Dimensions

p : 3 : Pitch

k : 15 : Head Height

AF : 36 : Width Across Flat
