Fischer FIS A - A4 - ETA app Resin Studs

by Fischer Fixings
From £244.25
From £293.10
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
8 x 90mm 90440167-09-42
£352.03
£422.44
cat: £352.03
cat: £422.44
2 days
8 x 110mm 90441167-29-89
£336.60
£403.92
cat: £336.60
cat: £403.92
2 days
8 x 130mm 90442167-31-93
£368.78
£442.54
cat: £368.78
cat: £442.54
29
8 x 175mm 90443167-32-01
£700.41
£840.49
cat: £700.41
cat: £840.49
2 days
10 x 110mm 90444167-32-19
£321.76
£386.11
cat: £321.76
cat: £386.11
2 days
10 x 130mm 90447167-32-27
£541.95
£650.34
cat: £541.95
cat: £650.34
2 days
10 x 200mm 90449167-32-35
£787.92
£945.50
cat: £787.92
cat: £945.50
2 days
12 x 120mm 44974168-11-47
£244.25
£293.10
cat: £244.25
cat: £293.10
12
12 x 140mm 90450168-11-54
£545.20
£654.24
cat: £545.20
cat: £654.24
2
12 x 160mm 90451168-11-62
£508.71
£610.45
cat: £508.71
cat: £610.45
80
12 x 180mm 90452168-11-70
£1,169.44
£1,403.33
cat: £1169.44
cat: £1403.33
2 days
12 x 210mm 90453168-11-88
£1,298.72
£1,558.46
cat: £1298.72
cat: £1558.46
2 days
16 x 175mm 90455168-11-96
£1,069.31
£1,283.17
cat: £1069.31
cat: £1283.17
2 days
16 x 200mm 90456168-12-04
£1,831.37
£2,197.64
cat: £1831.37
cat: £2197.64
2 days
16 x 250mm 90457168-12-12
£1,376.87
£1,652.24
cat: £1376.87
cat: £1652.24
2 days
20 x 245mm 90459168-12-20
£2,386.93
£2,864.32
cat: £2386.93
cat: £2864.32
2 days

Product Description

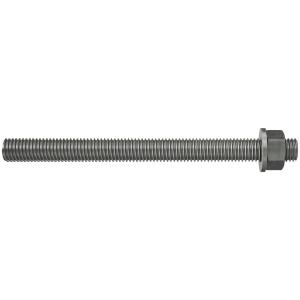

The fischer threaded rod FIS A is made from stainless steel. The threaded rod is a system component for the various fischer injection mortars. Together with the injection mortars, the fischer threaded rods are suitable and approved for all subsurfaces. A thorough cleaning of the drill hole is recommended for the maximum load-bearing capacity of the system. The system of stainless steel threaded rods in combination with fischer injection mortars is suitable and approved for fixings outside and in damp rooms without aggressive conditions.

Features


Advantages

  • The threaded rod FIS A can be used with almost every fischer injection mortar (except Highbond special mortar FIS HB). It can be individually selected based on requirements, thus allowing for a wide range of applications.
  • The wide range of approved threaded rods FIS A from M6 to M30 allows for various applications.
  • Please refer to the approvals of the injection mortar used.
  • The system is the first to offer lightweight, dynamic load specifications in an ETA mounted with FIS SB injection mortar and RSB mortar in cracked and non-cracked concrete.

    Specification


    Applications

  • Anchorings with each of the fischer injection mortars such as FIS PM, FIS SB, FIS EM Plus, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P, and FIS Green.

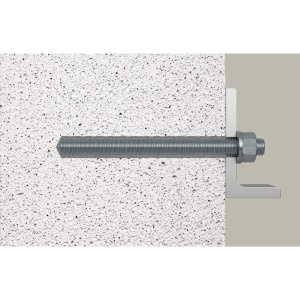

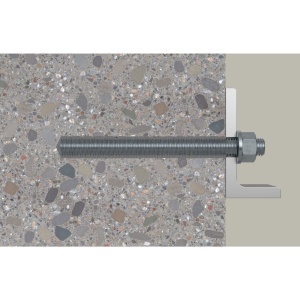

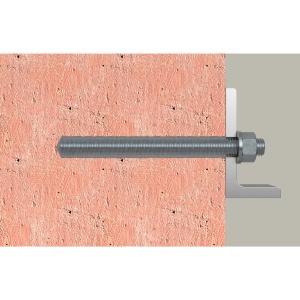

    Building materials
  • In connection with several fischer injection mortars the anchor rod FIS A is approved or suitable for different building materials.

    Approvals
  • ETA-02/0024
  • ETA-20/0603

    Functionality
  • The anchor rod FIS A is suitable for pre-positioned and push-through installation.
  • FIS A is set manually into the drill hole, by lightly rotating it until it reaches the drill hole base.
