Fischer FBN II - A4 - ETA Through Bolt

by Fischer Fixings
From £126.67
From £152.00
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
6 x 55mm 505532166-82-01
£126.67
£152.00
cat: £126.67
cat: £152.00
2 days
6 x 75mm 505535166-82-27
£139.98
£167.98
cat: £139.98
cat: £167.98
2 days
8 x 71mm 507555166-82-35
£151.11
£181.33
cat: £151.11
cat: £181.33
20
8 x 91mm 507556166-82-43
£176.07
£211.28
cat: £176.07
cat: £211.28
2 days
8 x 111mm 507557166-82-68
£210.74
£252.89
cat: £210.74
cat: £252.89
2 days
10 x 86mm 507558166-82-76
£205.52
£246.62
cat: £205.52
cat: £246.62
2 days
10 x 96mm 507559166-82-84
£218.50
£262.20
cat: £218.50
cat: £262.20
2 days
10 x 106 507560166-82-92
£240.60
£288.72
cat: £240.60
cat: £288.72
2 days
10 x 126mm 507561166-83-00
£267.93
£321.52
cat: £267.93
cat: £321.52
2 days
10 x 176mm 507562166-83-18
£438.75
£526.50
cat: £438.75
cat: £526.50
2 days
12 x 106mm 507563166-83-26
£365.18
£438.22
cat: £365.18
cat: £438.22
2 days
12 x 116mm 507564166-83-34
£303.55
£364.26
cat: £303.55
cat: £364.26
2 days
12 x 126mm 507565166-83-42
£373.33
£448.00
cat: £373.33
cat: £448.00
2 days
12 x 146mm 507566166-83-59
£373.54
£448.25
cat: £373.54
cat: £448.25
2 days
12 x 196mm 507567166-83-67
£494.34
£593.21
cat: £494.34
cat: £593.21
2 days
16 x 130mm 507568166-83-75
£640.33
£768.40
cat: £640.33
cat: £768.40
2 days
16 x 145mm 507569166-83-83
£617.41
£740.89
cat: £617.41
cat: £740.89
2 days
16 x 170mm 507570166-83-91
£917.53
£1,101.04
cat: £917.53
cat: £1101.04
2 days
20 x 187mm 507571166-84-09
£1,985.36
£2,382.43
cat: £1985.36
cat: £2382.43
2
20 x 217mm 507572166-84-17
£2,392.00
£2,870.40
cat: £2392.00
cat: £2870.40
7

Product Description

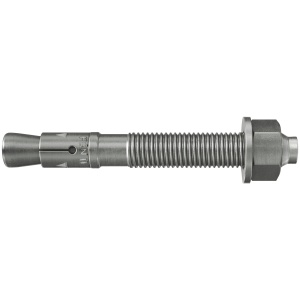

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The stainless steel version of the bolt anchor is suitable for fixing facade sub-structures, consoles, and ladders in external areas.

Features


Advantages

  • The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
  • The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
  • The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
  • Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
  • The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.

    Specification


    Applications

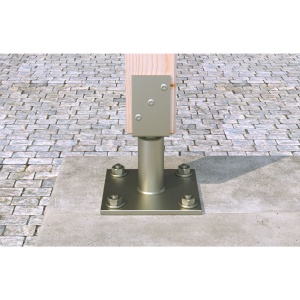

  • Steel constructions
  • Guard rails
  • Consoles

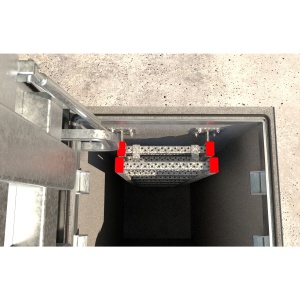

  • Ladders
  • Machines
  • Gates
  • Façades

    Building materials

     Approved for:

  • Concrete C20/25 to C50/60, non-cracked

    Also suitable for:

  • Concrete C12/15
  • Natural stone with dense structure

    You can find detailed information on building materials in the registration document.

    Approvals
  • ETA-07/0211
  • DoP No. 0192

    Functionality
  • The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
  • Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).

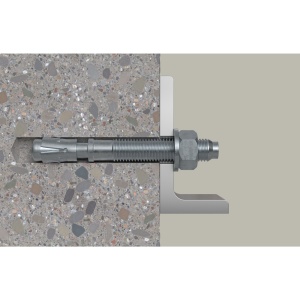

  • When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
  • The head embossing offers a simple control of the anchoring.
  • In the case of series installation, we recommend using the FABS bolt anchor setting tool.
