Through Bolt Reduced Embedment - Fischer FBN II K- BZP -ETA app

by Fischer Fixings
From £0.00
From £0.00
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
8 x 56mm 40806166-80-60
£34.14
£40.97
cat: £34.14
cat: £40.97
2 days
8 x 61mm 40807166-80-78
£36.24
£43.49
cat: £36.24
cat: £43.49
2 days
10 x 71mm 40946166-80-86
£42.04
£50.45
cat: £42.04
cat: £50.45
2 days
10 x 76mm 40947166-80-94
£49.58
£59.50
cat: £49.58
cat: £59.50
2 days
10 x 86mm 40827166-81-28
£68.56
£82.27
cat: £68.56
cat: £82.27
2 days
20 x 142mm 45577167-76-73
£0.00
£0.00
cat: £386.76
cat: £464.11
2 days
12 x 86mm 45272191-86-63
£67.46
£80.95
cat: £67.46
cat: £80.95
2 days
12 x 91mm 45273166-81-36
£74.98
£89.98
cat: £74.98
cat: £89.98
2 days
12 x 111mm 45274166-81-44
£84.63
£101.56
cat: £84.63
cat: £101.56
2 days
16 x 120mm 45571166-81-51
£117.53
£141.04
cat: £117.53
cat: £141.04
2 days
16 x 130mm 45572166-81-77
£145.47
£174.56
cat: £145.47
cat: £174.56
2 days
20 x 142mm 45577166-81-85
£386.76
£464.11
cat: £386.76
cat: £464.11
2 days

Product Description

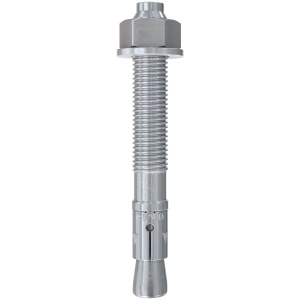

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixations in non-cracked concrete. Thanks to its long thread and the two anchorage depths, the fischer bolt anchor FBN II is particularly flexible. In addition to pre-positioned and push-through installation, the bolt anchor is suitable for stand-off installation. In the stainless steel design, the bolt anchor is suitable for facade sub-structures, cantilevers and ladders outside.

Features


Advantages

  • The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
  • The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
  • The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
  • Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
  • The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.

    Specification


    Applications

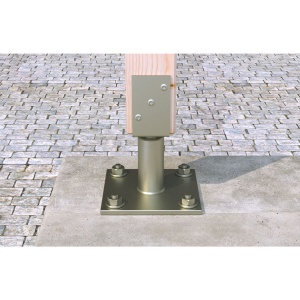

  • Steel constructions
  • Guard rails
  • Consoles

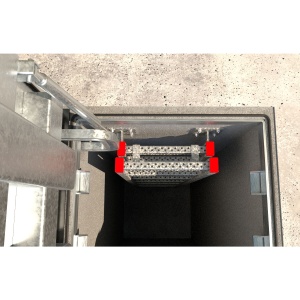

  • Ladders
  • Cable trays
  • Machines
  • Staircases
  • Gates
  • Façades

    Building materials

     Approved for:

  • Concrete C20/25 to C50/60, non-cracked

    Suitable for:

  • Concrete C12/15
  • Natural stone with dense structure

    You can find detailed information on building materials in the registration document.

    Approvals
  • ETA-07/0211
  • ETA-18/0101
  • DoP No. 0098
  • DoP No. 0268
  • DoP No. 0192

    Functionality

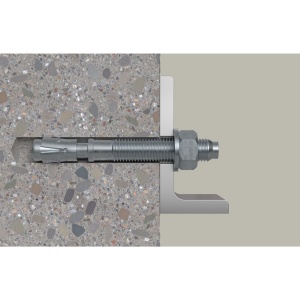

  • The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
  • Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
  • When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
  • The head embossing offers a simple control of the anchoring.
  • In the case of series installation, we recommend using the FABS bolt anchor setting tool.
