Galv - Class 6/Grd 8 - DIN 985
Galv - Class 6/Grd 8 - DIN 985
Galv - Class 6/Grd 8 - DIN 985CE Marked

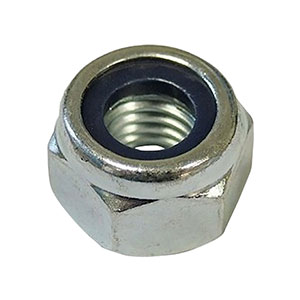

Galv - Class 6/Grd 8 - DIN 985 Nyloc Nut - Type T

by Hot Dipped Galv
From £2.69
From £3.23
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
M8 NNTM8GALV157-11-16
£2.69
£3.23
cat: £2.69
cat: £3.23
1000+
M10 NNTM10GALV157-10-58
£6.92
£8.30
cat: £6.92
cat: £8.30
1000+
M12 NNTM12GALV157-10-66
£8.45
£10.14
cat: £8.45
cat: £10.14
1000+
M16 NNTM16GALV157-10-74
£17.29
£20.75
cat: £17.29
cat: £20.75
767
M20 NNTM20GALV157-10-82
£32.44
£38.93
cat: £32.44
cat: £38.93
1000+
M24 NNTM24GALV157-10-90
£94.25
£113.10
cat: £94.25
cat: £113.10
144
M30 NNTM30GALV157-11-08
£282.75
£339.30
cat: £282.75
cat: £339.30
10

Product Description

Galvanised. Grade 8. DIN 985. Plastic/nylon insert to capture the bolt or screw providing a locking feature. Nuts are used in applications where vibration or motion could loosen or undo the nut. SPECIFICATION:

Features

  • Galvanised
  • Grade 8
  • DIN 985
  • Plastic/nylon insert to capture the bolt or screw providing a locking feature
  • Nuts are used in applications where vibration or motion could loosen or undo the nut

Dimensions

M : 8 : --------------M8--------------

a : 8 : Nut Thickness

b : 13 : Width Across Flat

M : 10 : --------------M10-------------

a : 10 : Nut Thickness

b : 17 : Width Across Flat

M : 12 : --------------M12-------------

a : 12 : Nut Thickness

b : 19 : Width Across Flat

M : 16 : --------------M16-------------

a : 16 : Nut Thickness

b : 24 : Width Across Flat

M : 20 : --------------M20-------------

a : 20 : Nut Thickness

b : 30 : Width Across Flat

M : 24 : --------------M24-------------

a : 24 : Nut Thickness

b : 36 : Width Across Flat

M : 30 : --------------M30-------------

a : 30 : Nut Thickness

b : 46 : Width Across Flat
