M12 - BZP - DIN603/555
M12 - BZP - DIN603/555
M12 - BZP - DIN603/555CE Marked

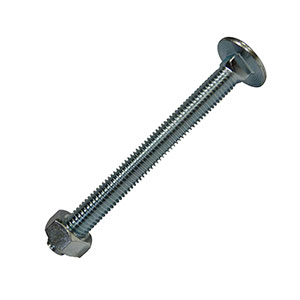

M12 - BZP - DIN603/555 Carriage Bolt & Nut

by Bright Zinc Plate
From £13.48
From £16.18
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
30mm 147-23-07
£13.48
£16.18
cat: £13.48
cat: £16.18
254
40mm 147-23-15
£16.94
£20.33
cat: £16.94
cat: £20.33
197
50mm 147-23-23
£22.18
£26.62
cat: £22.18
cat: £26.62
29
60mm 147-23-31
£16.90
£20.28
cat: £16.90
cat: £20.28
50
70mm 147-23-49
£18.64
£22.37
cat: £18.64
cat: £22.37
90
75mm 147-23-98
£45.64
£54.77
cat: £45.64
cat: £54.77
55
80mm 147-24-06
£18.46
£22.15
cat: £18.46
cat: £22.15
1000+
90mm 147-24-14
£28.65
£34.38
cat: £28.65
cat: £34.38
142
100mm 147-24-22
£27.89
£33.47
cat: £27.89
cat: £33.47
1000+
110mm 147-24-30
£20.77
£24.92
cat: £20.77
cat: £24.92
1000+
120mm 147-24-48
£24.56
£29.47
cat: £24.56
cat: £29.47
1000+
130mm 147-24-55
£30.42
£36.50
cat: £30.42
cat: £36.50
925
140mm 147-24-63
£37.39
£44.87
cat: £37.39
cat: £44.87
80
150mm 147-24-71
£34.41
£41.29
cat: £34.41
cat: £41.29
338
160mm 176-94-47
£27.47
£32.96
cat: £27.47
cat: £32.96
115
180mm 181-97-13
£41.47
£49.76
cat: £41.47
cat: £49.76
36
200mm 168-40-91
£35.32
£42.38
cat: £35.32
cat: £42.38
130
220mm 174-55-12
£49.82
£59.78
cat: £49.82
cat: £59.78
4 days
230mm 169-98-83
£41.20
£49.44
cat: £41.20
cat: £49.44
30
250mm 175-95-47
£54.13
£64.96
cat: £54.13
cat: £64.96
4 days
260mm 179-57-80
£49.19
£59.03
cat: £49.19
cat: £59.03
14
300mm 168-27-31
£57.46
£68.95
cat: £57.46
cat: £68.95
24

Product Description

Bright Zinc Plated for excellent corrosion resistance. The square underneath the domed head pulls into the timber being fastened, enabling bolt to be tightened. Manufactured to DIN 603/555. Ideal for bolting timbers together.

Features

  • Bright Zinc Plated for excellent corrosion resistance
  • The square underneath the domed head pulls into the timber being fastened, enabling bolt to be tightened
  • Manufactured to DIN 603/555
  • Ideal for bolting timbers together

Dimensions

p : 1.75 : Pitch

b : 30 : Thread Length <125mm

b : 36 : Thread Length 125 - 200mm

b : 49 : Thread Length <200mm

dk : 30.65 : 24.650 Head Width

f : 8.75 : Shoulder Height

k : 6.95 : Head Thickness

v : 12.7 : Square Square Dimensions

m : 10 : Nut Thickness

s : 19 : Shoulder Width
