M8 - BZP - DIN603/555
M8 - BZP - DIN603/555
M8 - BZP - DIN603/555
M8 - BZP - DIN603/555M8 - BZP - DIN603/555CE Marked

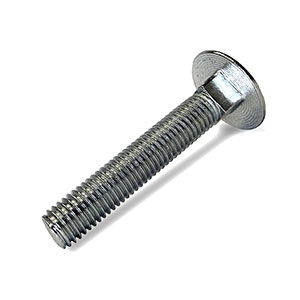

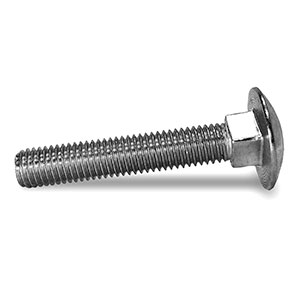

M8 - BZP - DIN603/555 Carriage Bolt & Nut

by Bright Zinc Plate
From £3.95
From £4.74
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
16mm 168-87-20
£12.10
£14.52
cat: £12.10
cat: £14.52
12 days
20mm 168-87-12
£4.19
£5.03
cat: £4.19
cat: £5.03
310
25mm 168-87-38
£3.95
£4.74
cat: £3.95
cat: £4.74
27
30mm 172-10-00
£10.74
£12.89
cat: £10.74
cat: £12.89
46
35mm 147-19-86
£12.52
£15.02
cat: £12.52
cat: £15.02
618
40mm 147-19-94
£6.68
£8.02
cat: £6.68
cat: £8.02
91
50mm 147-20-00
£6.29
£7.55
cat: £6.29
cat: £7.55
100
55mm 167-51-15
£7.15
£8.58
cat: £7.15
cat: £8.58
12 days
60mm 147-20-18
£8.84
£10.61
cat: £8.84
cat: £10.61
108
70mm 167-54-20
£7.98
£9.58
cat: £7.98
cat: £9.58
640
75mm 147-20-26
£18.41
£22.09
cat: £18.41
cat: £22.09
50
80mm 171-92-10
£13.10
£15.72
cat: £13.10
cat: £15.72
156
90mm 147-20-34
£19.76
£23.71
cat: £19.76
cat: £23.71
36
100mm 147-20-42
£11.51
£13.81
cat: £11.51
cat: £13.81
123
110mm 147-20-59
£12.29
£14.75
cat: £12.29
cat: £14.75
101
120mm 147-20-67
£11.99
£14.39
cat: £11.99
cat: £14.39
142
130mm 175-39-04
£25.01
£30.01
cat: £25.01
cat: £30.01
12 days
150mm 168-87-46
£25.47
£30.56
cat: £25.47
cat: £30.56
12 days

Product Description

Bright Zinc Plated for excellent corrosion resistance. The square underneath the domed head pulls into the timber being fastened, enabling bolt to be tightened. Manufactured to DIN 603/555. Ideal for bolting timbers together.

Features

  • Bright Zinc Plated for excellent corrosion resistance
  • The square underneath the domed head pulls into the timber being fastened, enabling bolt to be tightened
  • Manufactured to DIN 603/555
  • Ideal for bolting timbers together

Dimensions

p : 1.25 : Pitch

b : 22 : Thread Length <125mm

b : 28 : Thread Length 125 - 200mm

b : 41 : Thread Length <200mm

dk : 20.65 : Head Width

f : 5.6 : Shoulder Height

k : 4.88 : Head Thickness

v : 8.58 : Square Square Dimensions

m : 6.5 : Nut Thickness

s : 13 : Shoulder Width
