Type BX1
Type BX1

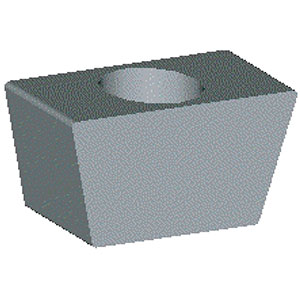

Type BX1 - Vee-Nut

by Beam Clamps
From £0.65
From £0.78
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
M6 BX1Z06119-82-17
£0.65
£0.78
cat: £0.65
cat: £0.78
201
M8 BX1Z08119-82-25
£0.65
£0.78
cat: £0.65
cat: £0.78
299

Product Description

M06, M08 and M10 tapped holes. Allows wasy fixing to decking. No penetration of the deck required. Vee nuts have tapered sides at 15 to fit in to the re-entrant channels. of metal decking. They are used for fixing light duty building services. equipment to the underside of the decking profile. All of the above loads have been subject to a 3:1 Factor of Safety. Material: Mild steel to BS EN 10025:1993 Grade S275JR. Finish: Zinc Plated to BS EN 12329:2000 Grade Fe//Zn5//A (Clear)

Features

  • M06, M08 and M10 tapped holes

  • Allows wasy fixing to decking

  • No penetration of the deck required


    • Vee nuts have tapered sides at 15° to fit in to the re-entrant channels
    of metal decking. They are used for fixing light duty building services
    equipment to the underside of the decking profile.

    All of the above loads have been subject to a 3:1 Factor of Safety.
    Material: Mild steel to BS EN 10025:1993 Grade S275JR
    Finish: Zinc Plated to BS EN 12329:2000 Grade Fe//Zn5//A (Clear)
