M20 - BZP - 10.9 Grade DIN7991
M20 - BZP - 10.9 Grade DIN7991
M20 - BZP - 10.9 Grade DIN7991
M20 - BZP - 10.9 Grade DIN7991M20 - BZP - 10.9 Grade DIN7991CE Marked

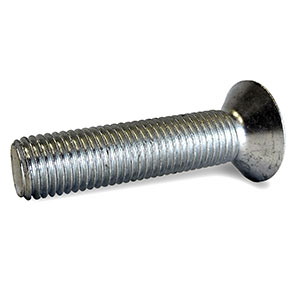

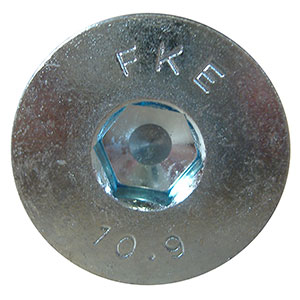

M20 - BZP - 10.9 Grade DIN7991 - Countersunk Socket Screws

by Bright Zinc Plate
From £74.96
From £89.95
per 100
Size/Model No. Stock No. Price per hundred Available
Stock
Quantity
40mm 118-01-40
£84.19
£101.03
cat: £84.19
cat: £101.03
49
45mm 118-01-57
£74.96
£89.95
cat: £74.96
cat: £89.95
133
50mm 118-01-65
£89.39
£107.27
cat: £89.39
cat: £107.27
1000+
55mm 118-01-73
£83.15
£99.78
cat: £83.15
cat: £99.78
1000+
60mm 118-01-81
£99.19
£119.03
cat: £99.19
cat: £119.03
1000+
65mm 174-83-26
£106.13
£127.36
cat: £106.13
cat: £127.36
1000+
70mm 168-75-32
£121.16
£145.39
cat: £121.16
cat: £145.39
1000+
75mm 168-06-85
£123.99
£148.79
cat: £123.99
cat: £148.79
2 days
80mm 140-28-09
£144.22
£173.06
cat: £144.22
cat: £173.06
423
90mm 168-40-67
£146.55
£175.86
cat: £146.55
cat: £175.86
219
100mm 168-06-93
£168.52
£202.22
cat: £168.52
cat: £202.22
293
130mm 180-68-76
£472.88
£567.46
cat: £472.88
cat: £567.46
2 days
300mm 182-23-03
£4,000.00
£4,800.00
cat: £4000.00
cat: £4800.00
2 days

Product Description

M20 Socket Head Countersunk Screws. DIN 7991. SPECIFICATION: Material:Class 10.9 Zinc Plated Steel Standard:DIN 7991 Thread Diameter:20mm Thread Pinch:2.5mm Socket Size:12mm

Features

  • M20 Socket Head Countersunk Screws
  • DIN 7991

Specification


Material:Class 10.9 Zinc Plated Steel
Standard:DIN 7991
Thread Diameter:20mm
Thread Pinch:2.5mm
Socket Size:12mm

Dimensions

p : 2.5 : Pitch

af : 12 : Width Across Flat

dk : 36 : Head Diameter

k : 8.5 : Head Height

b : 46 : Thread Length < 125

b : 52 : Thread Length 125 - 200
