M16 - BZP - 10.9 Grade DIN7991 Countersunk Socket - 90 Degree

M16 - BZP - 10.9 Grade DIN7991 - Countersunk Socket Screws

by Bright Zinc Plate

_{From £40}^.43

_{From £48}^.52

per 100

Size/Model No.	Stock No.	Price per hundred	Available Stock	Quantity

30mm	163-56-55	_£60^.49 _£72^.59 _{cat: £60}^.49 _{cat: £72}^.59	116
35mm	162-65-89	_£42^.17 _£50^.60 _{cat: £42}^.17 _{cat: £50}^.60	1000+
40mm	118-00-90	_£45^.67 _£54^.80 _{cat: £45}^.67 _{cat: £54}^.80	1000+
45mm	118-01-08	_£46^.07 _£55^.28 _{cat: £46}^.07 _{cat: £55}^.28	1000+
50mm	118-01-16	_£55^.55 _£66^.66 _{cat: £55}^.55 _{cat: £66}^.66	1000+
55mm	118-01-24	_£40^.43 _£48^.52 _{cat: £40}^.43 _{cat: £48}^.52	1000+
60mm	118-01-32	_£63^.36 _£76^.03 _{cat: £63}^.36 _{cat: £76}^.03	1000+
70mm	140-27-83	_£76^.05 _£91^.26 _{cat: £76}^.05 _{cat: £91}^.26	1000+
75mm	167-93-31	_£77^.10 _£92^.52 _{cat: £77}^.10 _{cat: £92}^.52	40
80mm	182-13-54	_£87^.50 _£105^.00 _{cat: £87}^.50 _{cat: £105}^.00	403
90mm	140-27-91	_£103^.66 _£124^.39 _{cat: £103}^.66 _{cat: £124}^.39	59
100mm	142-66-18	_£102^.56 _£123^.07 _{cat: £102}^.56 _{cat: £123}^.07	57
110mm	180-30-97	_£67^.72 _£81^.26 _{cat: £67}^.72 _{cat: £81}^.26	21
120mm	179-31-24	_£129^.29 _£155^.15 _{cat: £129}^.29 _{cat: £155}^.15	92
130mm	180-94-41	_£100^.00 _£120^.00 _{cat: £100}^.00 _{cat: £120}^.00	106
140mm	166-59-67	_£118^.38 _£142^.06 _{cat: £118}^.38 _{cat: £142}^.06	7
180mm	180-16-79	_£893^.75 _£1,072^.50 _{cat: £893}^.75 _{cat: £1072}^.50	12 days
190mm	185-65-33	_£1,090^.64 _£1,308^.77 _{cat: £1090}^.64 _{cat: £1308}^.77	12 days
300mm	185-65-41	_£1,381^.25 _£1,657^.50 _{cat: £1381}^.25 _{cat: £1657}^.50	12 days

Product Description

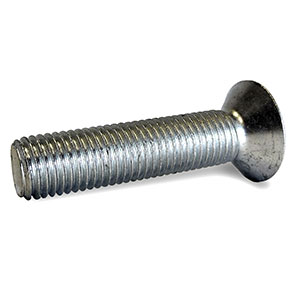

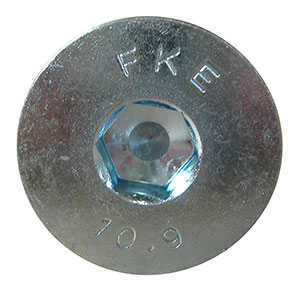

M16 Socket Head Countersunk Screws. DIN 7991. SPECIFICATION: Material:Class 10.9 Zinc Plated Steel Standard:DIN 7991 Thread Diameter:16mm Thread Pinch:2mm Socket Size:10mm

Features

M16 Socket Head Countersunk Screws
DIN 7991

Specification

Quantity in stock:100 item(s) available
Bolt size (diameter in mm):M16
Shank length (mm):30
Finish:BZP
Head shape:Countersunk Socket

Dimensions

p : 2 : Pitch

af : 10 : Width Across Flat

dk : 30 : Head Diameter

k : 7.5 : Head Height

b : 38 : Thread Length < 125

b : 44 : Thread Length 125 - 200
