M10 - BZP - 10.9 Grade DIN7991 Countersunk Socket - 90 Degree

M10 - BZP - 10.9 Grade DIN7991 - Countersunk Socket Screws

by Bright Zinc Plate

_{From £10}^.06

_{From £12}^.07

per 100

Size/Model No.	Stock No.	Price per hundred	Available Stock	Quantity

16mm	164-01-68	_£13^.73 _£16^.48 _{cat: £13}^.73 _{cat: £16}^.48	46
20mm	165-55-96	_£10^.06 _£12^.07 _{cat: £10}^.06 _{cat: £12}^.07	296
25mm	137-28-04	_£11^.80 _£14^.16 _{cat: £11}^.80 _{cat: £14}^.16	1000+
30mm	140-27-18	_£13^.27 _£15^.92 _{cat: £13}^.27 _{cat: £15}^.92	1000+
35mm	140-27-26	_£15^.96 _£19^.15 _{cat: £15}^.96 _{cat: £19}^.15	1000+
40mm	118-00-17	_£15^.96 _£19^.15 _{cat: £15}^.96 _{cat: £19}^.15	1000+
45mm	118-00-25	_£20^.12 _£24^.14 _{cat: £20}^.12 _{cat: £24}^.14	174
50mm	118-00-33	_£20^.88 _£25^.06 _{cat: £20}^.88 _{cat: £25}^.06	677
60mm	118-00-41	_£24^.00 _£28^.80 _{cat: £24}^.00 _{cat: £28}^.80	202
65mm	174-28-99	_£28^.70 _£34^.44 _{cat: £28}^.70 _{cat: £34}^.44	80
70mm	183-59-66	_£18^.43 _£22^.12 _{cat: £18}^.43 _{cat: £22}^.12	549
75mm	169-98-00	_£31^.95 _£38^.34 _{cat: £31}^.95 _{cat: £38}^.34	12 days
80mm	163-26-11	_£31^.95 _£38^.34 _{cat: £31}^.95 _{cat: £38}^.34	740
100mm	169-98-18	_£65^.79 _£78^.95 _{cat: £65}^.79 _{cat: £78}^.95	117
120mm	183-82-34	_£126^.75 _£152^.10 _{cat: £126}^.75 _{cat: £152}^.10	12 days
150mm	165-76-59	_£150^.84 _£181^.01 _{cat: £150}^.84 _{cat: £181}^.01	12 days

Product Description

Socket Head Countersunk Screws. DIN 7991. SPECIFICATION: Material:Class 10.9 Zinc Plated Steel Standard:DIN 7991 Thread Diameter:10mm Thread Pinch:1.5mm Socket Size:6mm

Features

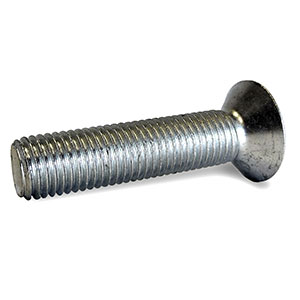

M10 Socket Head Countersunk Screws
DIN 7991

Specification

Material:Class 10.9 Zinc Plated Steel
Standard:DIN 7991
Thread Diameter:10mm
Thread Pinch:1.5mm
Socket Size:6mm

Dimensions

p : 1.5 : Pitch

af : 6 : Width Across Flat

dk : 20 : Head Diameter

k : 5.5 : Head Height

b : 26 : Thread Length < 125

b : 32 : Thread Length 125 - 200
