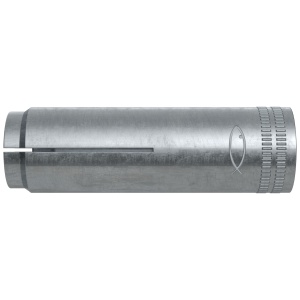

Fischer EA - Standard - BZP Drop In Anchor

Fischer EA Standard Type Drop In Anchor - BZP

by Fischer Fixings

_{From £6}^.30

_{From £7}^.56

per 100

Size/Model No.	Stock No.	Price per hundred	Available Stock	Quantity

M6 TL90159	101-45-13	_£6^.30 _£7^.56 _{cat: £6}^.30 _{cat: £7}^.56	49
M8 TL90160	101-45-21	_£9^.14 _£10^.97 _{cat: £9}^.14 _{cat: £10}^.97	1000+
M10 TL90161	101-45-39	_£12^.73 _£15^.28 _{cat: £12}^.73 _{cat: £15}^.28	62
M12 TL090162	101-45-47	_£17^.01 _£20^.41 _{cat: £17}^.01 _{cat: £20}^.41	2 days
M16 TL90163	101-45-54	_£58^.45 _£70^.14 _{cat: £58}^.45 _{cat: £70}^.14	60

Technical Specifications

DRILL DIA	MIN DRILL	MIN ANCHORAGE	THREAD	BOLT PENETRATION
	HOLE DEPTH	DEPTH		MIN	MAX
8mm	25mm	25mm	M6	6mm	12mm
10mm	30mm	30mm	M8	8mm	13mm
12mm	40mm	40mm	M10	8mm	17mm
16mm	50mm	50mm	M12	10mm	18mm
20mm	65mm	65mm	M16	12mm	23mm

Product Description

The fischer hammerset anchor EA N is an internal thread anchor made from zinc-plated and stainless steel. The hammerset anchor is ideal for the multiple fixation of non-structural systems that do not require approved anchorage. The assembly of the internal thread anchor is extremely cost-effective thanks to the low embedment depth, fast hammerset installation, and direction-controlled screwing process. The EA N is mounted with the hammer flush to the base material. With the setting tool EA-ST, the sleeve is expanded and braced against the drill hole wall through the driving in of the internal pin. No torque should be applied to the screw to enable correct expansion.

Features

Advantages

Simple hammerset installation

The metric internal thread allows for the use of standard screws or threaded rods for ideal adaptation in line with the intended use.

The hand setting tool EA-ST facilitates fast installation.

Specification

Applications

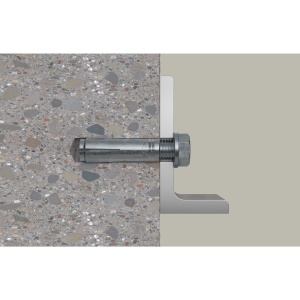

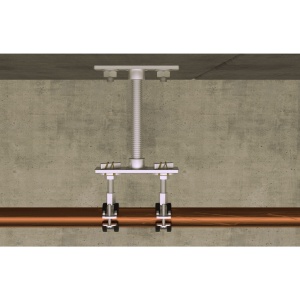

Pipelines

Cable trays

Consoles

Building materials

Concrete C12/15, non-cracked

Concrete C20/25, non-cracked

Functionality

The EA N is suitable for pre-positioned installation.

Position the hammerset anchor in the drill hole and drive in flush to the surface of the base material using the hammer.

The setting tool EA-ST is then used to expand the sleeve against the drill hole wall by driving in the internal pin.

The setting tools must sit on the edge of the anchor to ensure correct expansion.
