Fischer Projecting Type
Fischer Projecting Type

Fischer Projecting Type - Wallbolt

by Fischer Fixings
From £50.28
From £60.34
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
8 x 10mm Fwb 8/10P42699101-42-24
£50.28
£60.34
cat: £50.28
cat: £60.34
3
8 x 25mm Fwb 8/25P42700101-42-32
£85.66
£102.79
cat: £85.66
cat: £102.79
5
10 x 60mm FWB 10/60P42704101-42-73
£145.72
£174.86
cat: £145.72
cat: £174.86
14
12 x 75mm FWB 12/75P42707101-43-49
£208.21
£249.85
cat: £208.21
cat: £249.85
14
16 x 35mm FWB 16/35P42709101-43-56
£251.94
£302.33
cat: £251.94
cat: £302.33
5

Product Description

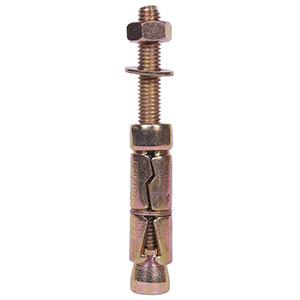

The segmented steel expander shield is assembled ready for use with bolts or threaded rods of the appropriate diameter. Function - torque controlled friction locking expansion. Three piece shield for even load spread. Traditional fixing method with wide user acceptance. Zinc plated and passivated for corrosive protection. Suitable for: Concrete B15 and natural stone with dense structure. For fixing of: Installation rails, ventilation ducts, pipework, suspended ceilings, metal profiles, shelf feet. Also suitable for temporary fixings such as wall shuttering.

Features

  • The segmented steel expander shield is assembled ready for use with bolts or threaded rods of the appropriate diameter.

  • Function - torque controlled friction locking expansion.

  • Three piece shield for even load spread.

  • Traditional fixing method with wide user acceptance.

  • Zinc plated and passivated for corrosive protection.

  • Suitable for: Concrete  B15 and natural stone with dense structure.

  • For fixing of: Installation rails, ventilation ducts, pipework, suspended ceilings, metal profiles, shelf feet. Also suitable for temporary fixings such as wall shuttering
