Fischer Loose Type
Fischer Loose Type

Fischer Loose Type - Wallbolt

by Fischer Fixings
From £38.53
From £46.24
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
6 x 10mm 42677101-40-26
£45.25
£54.30
cat: £45.25
cat: £54.30
29
6 x 25mm 42678101-40-34
£46.64
£55.97
cat: £46.64
cat: £55.97
3
8 x 10mm 42680101-40-59
£38.53
£46.24
cat: £38.53
cat: £46.24
70
8 x 25mm 42681101-40-67
£76.23
£91.48
cat: £76.23
cat: £91.48
3
8 x 40mm 42682101-40-75
£88.05
£105.66
cat: £88.05
cat: £105.66
4
12 x 40mm 42689101-41-41
£97.23
£116.68
cat: £97.23
cat: £116.68
3
16 x 15mm 42691101-41-66
£323.18
£387.82
cat: £323.18
cat: £387.82
2
16 x 30mm 42692101-41-74
£353.41
£424.09
cat: £353.41
cat: £424.09
1
Technical Specifications
DRILL DIAHOLE DEPTHMAX FIXTURETHREAD
THICKNESS
10mm45mm10mmM6
10mm45mm25mmM6
10mm45mm40mmM6
14mm55mm10mmM8
14mm55mm25mmM8
14mm55mm40mmM8
16mm65mm10mmM10
16mm65mm25mmM10
16mm65mm50mmM10
16mm65mm75mmM10
20mm90mm10mmM12
20mm90mm25mmM12
20mm90mm40mmM12
20mm90mm60mmM12
25mm125mm15mmM16
25mm125mm30mmM16
25mm125mm60mmM16

Product Description

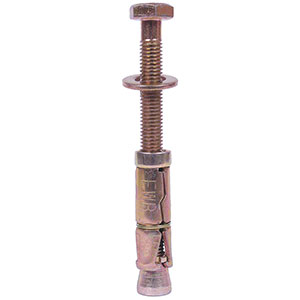

The segmented steel expander shield is assembled ready for use with bolts or threaded rods of the appropriate diameter. Function - torque controlled friction locking expansion. Three piece shield for even load spread. Traditional fixing method with wide user acceptance. Zinc plated and passivated for corrosive protection. Suitable for: Concrete B15 and natural stone with dense structure. For fixing of: Installation rails, ventilation ducts, pipework, suspended ceilings, metal profiles, shelf feet. Also suitable for temporary fixings such as wall shuttering.

Features

  • The segmented steel expander shield is assembled ready for use with bolts or threaded rods of the appropriate diameter.

  • Function - torque controlled friction locking expansion.

  • Three piece shield for even load spread.

  • Traditional fixing method with wide user acceptance.

  • Zinc plated and passivated for corrosive protection.

  • Suitable for: Concrete  B15 and natural stone with dense structure.

  • For fixing of: Installation rails, ventilation ducts, pipework, suspended ceilings, metal profiles, shelf feet. Also suitable for temporary fixings such as wall shuttering
