Sleeve Anchor - BZP - Fischer - Bolt - FSA-S

by Fischer Fixings
From £68.82
From £82.58
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
10 x 10mm 68523101-38-95
£68.82
£82.58
cat: £68.82
cat: £82.58
104
12 x 10mm 68526101-39-03
£81.90
£98.28
cat: £81.90
cat: £98.28
181
10 x 35mm 68524198-66-60
£69.10
£82.92
cat: £69.10
cat: £82.92
2 days
Technical Specifications
DRILL DIAMIN DRILLANCHORAGEANCHORMAX USEABLETHREAD
HOLE DEPTHDEPTHLENGTHLENGTH
10mm65mm40mm70mm10mmM8
12mm75mm50mm81mm10mmM10

Product Description

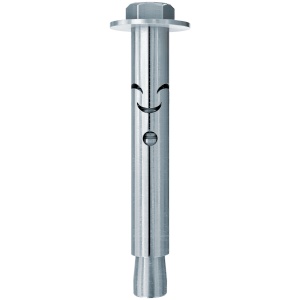

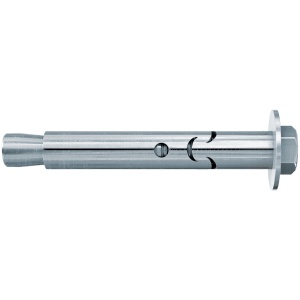

The fischer sleeve anchor FSA-S is a zinc-plated steel anchor with a hexagonal screw for structural anchorings. The fischer sleeve anchor is ideal for the fixation of non-safety-relevant anchorings such as cantilevers, handrails, cable trays, and temporary anchors in non-cracked concrete. The optimised anchor geometry offers a high shear load resistance and a high level of safety. The FSA-S is installed in a time-saving push-through installation. During tightening, the cone is pulled into the expansion sleeve and expands it against the drill hole wall. The recesses act as a crumple zone to take the torque slippage. The detachable screw connection allows for surface-flush removal.

Features


Advantages

  • The optimised geometry minimises setting energy and enables the use in extremely narrow spaces. This allows for user-friendly installation.
  • The anchor design makes it possible to use different head shapes for flexible design solutions: Hexagon head (type S), bolt version with nut and washer (type B).
  • The detachable screw connection allows for surface flush removal.

    Specification


    Applications

  • Handrails
  • Consoles
  • Ladders
  • Cable trays
  • Gates
  • Façades
  • Temporary or structural fixings

    Building materials

     Suitable for:

  • Concrete C12/15 to C20/25, non-cracked
  • Natural stone with dense structure

    Functionality

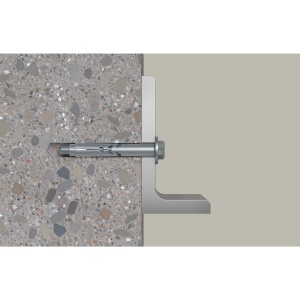

  • The FSA is suitable for push-through installation.
  • When applying the torque, the cone is pulled into the expansion sleeve and expands it against the drill hole wall.
  • The half-moon shaped recesses act as a crumple zone to take the torque slippage, so that the attachment is pulled onto the anchor base.
