Fischer FSA-B - Nut Type
Fischer FSA-B - Nut Type
Fischer FSA-B - Nut Type
Fischer FSA-B - Nut Type
Fischer FSA-B - Nut Type
Fischer FSA-B - Nut Type
Chevron Down
Fischer FSA-B - Nut TypeFischer FSA-B - Nut TypeFischer FSA-B - Nut TypeFischer FSA-B - Nut TypeFischer FSA-B - Nut TypeCE Marked

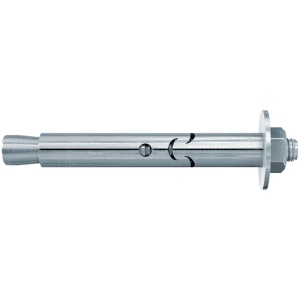

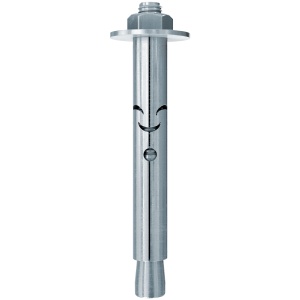

Fischer - Nut - FSA- B Type - Sleeve Anchor - BZP

by Fischer Fixings
From £10.71
From £12.85
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
8 x 40mm 08/0842663101-37-39
£12.21
£14.65
cat: £12.21
cat: £14.65
2
8 x 65mm 08/3093805101-37-47
£10.71
£12.85
cat: £10.71
cat: £12.85
5
8 x 85mm 08/5542664101-37-54
£20.90
£25.08
cat: £20.90
cat: £25.08
2 days
10 x 50mm 10/1093807101-37-62
£16.11
£19.33
cat: £16.11
cat: £19.33
2 days
12 x 129mm 12/7593813101-38-20
£54.74
£65.69
cat: £54.74
cat: £65.69
15
16 x 65mm 16/1242668101-38-38
£40.79
£48.95
cat: £40.79
cat: £48.95
2 days
16 x 110mm 16/5042660101-38-46
£63.82
£76.58
cat: £63.82
cat: £76.58
2 days
16 x 140mm 16/8042669101-38-53
£118.17
£141.80
cat: £118.17
cat: £141.80
2 days
Technical Specifications
DRILL DIAMIN DRILLANCHORAGESLEEVEMAX USEABLETHREAD
HOLE DEPTHDEPTHLENGTHLENGTH
6mm35mm20mm25mm5mmM4.5
6mm48mm30mm38mm8mmM4.5
6mm68mm33mm58mm25mmM4.5
8mm57mm35mm42mm8mmM6
8mm81mm36mm66mm30mmM6
8mm107mm37mm92mm55mmM6
10mm63mm38mm48mm10mmM8
10mm90mm40mm75mm35mmM8
10mm115mm40mm100mm60mmM8
12mm73mm46mm58mm12mmM10
12mm85mm50mm70mm20mmM10
12mm115mm50mm100mm50mmM10
12mm140mm50mm125mm75mmM10
16mm84mm52mm64mm12mmM12
16mm128mm58mm108mm50mmM12
16mm162mm62mm142mm80mmM12
20mm107mm62mm82mm20mmM16
20mm139mm64mm114mm50mmM16
20mm183mm63mm158mm95mmM16

Product Description

The fischer sleeve anchor FSA-B is made from zinc-plated steel with a nut and washer for structural anchors made from zinc-plated steel. The fischer sleeve anchor is ideal for the fixation of non-safety-relevant anchorings such as cantilevers, handrails, and cable trays in non-cracked concrete. The optimised anchor geometry offers a high shear load resistance and a high level of safety. The FSA-B is installed in a time-saving push-through installation. During tightening, the cone is pulled into the expansion sleeve and expands it against the drill hole wall. The recesses act as a crumple zone to take the torque slippage. In this way, the fixture is pulled onto the base material.

Features


Advantages

  • The optimised geometry minimises setting energy and enables the use in extremely narrow spaces. This allows for user-friendly installation.
  • The anchor design makes it possible to use different head shapes for flexible design solutions: Hexagon head (type S), bolt version with nut and washer (type B).
  • The detachable screw connection allows for surface flush removal.

    Specification


    Applications

  • Handrails
  • Consoles
  • Ladders
  • Cable trays
  • Gates
  • Façades
  • Temporary or structural fixings

    Building materials

     Suitable for:

  • Concrete C12/15 to C20/25, non-cracked
  • Natural stone with dense structure

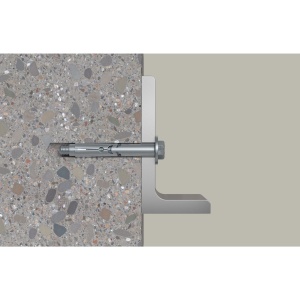

    Functionality
  • The FSA is suitable for push-through installation.
  • When applying the torque, the cone is pulled into the expansion sleeve and expands it against the drill hole wall.
  • The half-moon shaped recesses act as a crumple zone to take the torque slippage, so that the attachment is pulled onto the anchor base.
