Fischer Hammerfix N-S Hammerscrew

fischer Hammerfix N-S

by Fischer Fixings

_{From £6}^.03

_{From £7}^.24

per 100

Size/Model No.	Stock No.	Price per hundred	Available Stock	Quantity

5 x 30mm 50395	101-33-82	_£6^.03 _£7^.24 _{cat: £6}^.03 _{cat: £7}^.24	30
5 x 40mm 50351	101-33-90	_£6^.51 _£7^.81 _{cat: £6}^.51 _{cat: £7}^.81	2 days
5 x 50mm 50352	101-34-57	_£6^.65 _£7^.98 _{cat: £6}^.65 _{cat: £7}^.98	2 days
6 x 40mm 50354	101-34-65	_£9^.73 _£11^.68 _{cat: £9}^.73 _{cat: £11}^.68	68
6 x 60mm 50355	101-34-73	_£9^.95 _£11^.94 _{cat: £9}^.95 _{cat: £11}^.94	31
8 x 60mm 50356	101-34-81	_£25^.19 _£30^.23 _{cat: £25}^.19 _{cat: £30}^.23	2 days
8 x 80mm 50358	101-34-99	_£31^.50 _£37^.80 _{cat: £31}^.50 _{cat: £37}^.80	2 days
8 x 100mm 50357	101-35-07	_£16^.66 _£19^.99 _{cat: £16}^.66 _{cat: £19}^.99	2 days
10 x 160mm	195-97-66	_£83^.15 _£99^.78 _{cat: £83}^.15 _{cat: £99}^.78	100

Technical Specifications

Drill Dia	Min Drill	Fixing	Min anchorage	Max Usable	Drive Nail
	Hole	Length	Depth	Length	Size
5mm	45mm	30mm	25mm	5mm	3.5x38mm
5mm	55mm	40mm	25mm	15mm	3.5x48mm
5mm	65mm	50mm	25mm	25mm	3.5x58mm
6mm	55mm	40mm	30mm	10mm	4x48mm
6mm	75mm	60mm	30mm	30mm	4x64mm
8mm	75mm	60mm	40mm	20mm	5x65mm
8mm	95mm	80mm	40mm	40mm	5x85mm
8mm	115mm	100mm	40mm	60mm	5x105mm

Product Description

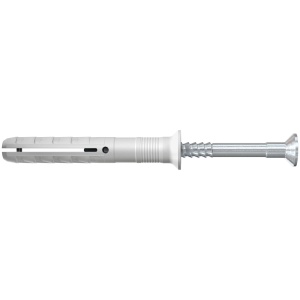

The fischer Hammerfix N-S with countersunk head consists of a high-quality nylon plug and a zinc-plated nail screw. These are already pre-fitted for quick assembly. The Hammerfix is led through the component in the time-saving through-type installation. When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material. The fischer Hammerfix N-S with countersunk head is ideal for fixing timber constructions in all building materials in internal areas.

Features

Advantages

The rapid hammerset installation reduces the amount of time required and allows for an economic series installation.

The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation.

Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling.

The wide range of diameters and usage lengths provides the correct plug for every fixing.

Specification

Applications

Substructures made of wood

Wall connection or plaster profiles

Cable and pipe clips

Perforated tapes

Building materials

Concrete

Solid sand-lime brick

Building brick

Natural stone

Solid brick made from lightweight concrete

Aerated concrete

Solid panel made from gypsum

Functionality

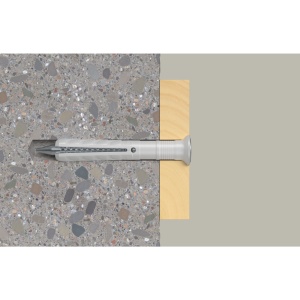

Suitable for push-through installation.

When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material.

Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes.
