M20 - BZP - 8.8 Grade DIN931 High Tensile Bolt

M20 - BZP Bolt - 8.8 Grade - DIN931

by Bright Zinc Plate

_{From £42}^.22

_{From £50}^.66

per 100

Size/Model No.	Stock No.	Price per hundred	Available Stock	Quantity

55mm	155-08-47	_£42^.22 _£50^.66 _{cat: £42}^.22 _{cat: £50}^.66	60
60mm	93-40-00	_£50^.52 _£60^.62 _{cat: £50}^.52 _{cat: £60}^.62	295
65mm	93-40-18	_£59^.57 _£71^.48 _{cat: £59}^.57 _{cat: £71}^.48	25
70mm	93-40-26	_£56^.74 _£68^.09 _{cat: £56}^.74 _{cat: £68}^.09	188
75mm	93-40-34	_£63^.70 _£76^.44 _{cat: £63}^.70 _{cat: £76}^.44	45
80mm	93-40-42	_£62^.76 _£75^.31 _{cat: £62}^.76 _{cat: £75}^.31	51
90mm	93-40-59	_£68^.98 _£82^.78 _{cat: £68}^.98 _{cat: £82}^.78	1
100mm	93-40-67	_£68^.67 _£82^.40 _{cat: £68}^.67 _{cat: £82}^.40	73
110mm	93-40-75	_£82^.75 _£99^.30 _{cat: £82}^.75 _{cat: £99}^.30	15
120mm	93-40-83	_£80^.19 _£96^.23 _{cat: £80}^.19 _{cat: £96}^.23	35
130mm	93-40-91	_£90^.02 _£108^.02 _{cat: £90}^.02 _{cat: £108}^.02	36
140mm	93-41-09	_£105^.18 _£126^.22 _{cat: £105}^.18 _{cat: £126}^.22	31
150mm	93-41-17	_£113^.42 _£136^.10 _{cat: £113}^.42 _{cat: £136}^.10	17
160mm	93-41-25	_£173^.42 _£208^.10 _{cat: £173}^.42 _{cat: £208}^.10	57
170mm	152-22-26	_£128^.18 _£153^.82 _{cat: £128}^.18 _{cat: £153}^.82	75
180mm	93-41-33	_£177^.19 _£212^.63 _{cat: £177}^.19 _{cat: £212}^.63	17
190mm	175-14-94	_£148^.65 _£178^.38 _{cat: £148}^.65 _{cat: £178}^.38	5
200mm	93-41-41	_£221^.69 _£266^.03 _{cat: £221}^.69 _{cat: £266}^.03	114
220mm	152-22-34	_£192^.60 _£231^.12 _{cat: £192}^.60 _{cat: £231}^.12	30
240mm	152-22-42	_£212^.02 _£254^.42 _{cat: £212}^.02 _{cat: £254}^.42	9
250mm	187-43-20	_£228^.65 _£274^.38 _{cat: £228}^.65 _{cat: £274}^.38	2
260mm	152-22-59	_£491^.99 _£590^.39 _{cat: £491}^.99 _{cat: £590}^.39	6
280mm	152-22-67	_£229^.22 _£275^.06 _{cat: £229}^.22 _{cat: £275}^.06	12 days
300mm	152-22-75	_£301^.59 _£361^.91 _{cat: £301}^.59 _{cat: £361}^.91	5
400mm	167-28-72	_£1,274^.26 _£1,529^.11 _{cat: £1274}^.26 _{cat: £1529}^.11	12 days

Product Description

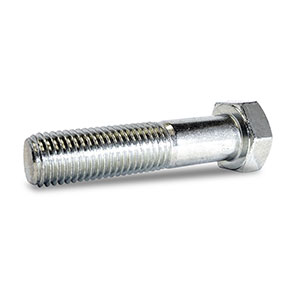

M20 Grade 8.8 High tensile hexagon head bolts DIN 931 are sometimes referred to as a part threaded bolts. They are easily identified by their 8.8 head markings and usually but not always have metric thread forms. The most common surface finish in use is bright zinc plated. Hot dipped galvanised finishes are becoming ever more popular, particularly in the rail industry sector.

Features

Hexagon head

High tensile steel

Part threaded

Grade 8.8

Bright zinc plated

DIN931

Specification

Size:55-300mm
Thread:M20
Finish:Bright Zinc Plated

Dimensions

o : 2.5 : Pitch

b : 46 : Thread Length <125mm

b : 52 : Thread Length 125 - 200mm

b : 65 : Thread Lenth <200mm

k : 12.5 : Head Height

AF : 30 : Width Across Flat
