Type BC - Hook
Type BC - Hook
Type BC - Hook
Type BC - HookType BC - HookType BC - Hook

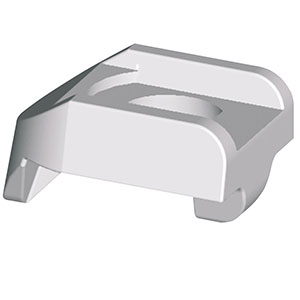

Type BC - Hook - Recessed Top

by Beam Clamps
From £0.96
From £1.15
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
M10 BC1G1092-92-73
£0.96
£1.15
cat: £0.96
cat: £1.15
15
M12 BC1G1292-92-81
£2.42
£2.90
cat: £2.42
cat: £2.90
5
M20 BC1G2092-93-07
£5.89
£7.07
cat: £5.89
cat: £7.07
24
M24 BC1G2492-93-15
£14.56
£17.47
cat: £14.56
cat: £17.47
10

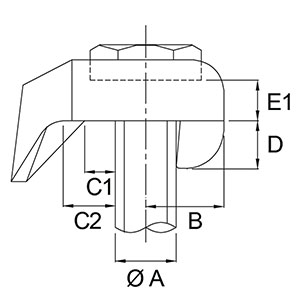

Technical Specifications
ProductABC1C2DE1E2WidthTorque
CodeBolt Dia(mm)(mm)(mm)(mm)(mm)(mm)(mm)(Nm)
BC1 G08M08957.5659223
BC1 G10M101249.57.56112910
BC1 G12M12156.5139.571231.535
BC1 G16M161781311.59174175
BC1 G20M202191413.5112149.5145
BC1 G24M2426131817132560245

Product Description

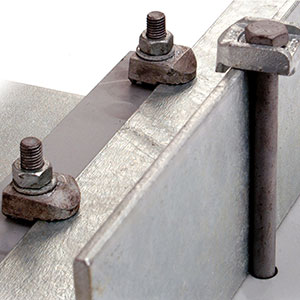

Designed for hooking onto the flanges of angles and channels to make steelwork connections. Recessed top to hold the head of a hexagon bolt in position whilst the nut is tightened. Manufactured from ductile iron. Hot dip galvanised as standard. 5 to 1 factor of safety. Lloyds register approved.

Features

  • Designed for hooking onto the flanges of angles and channels to make steelwork connections

  • Recessed top to hold the head of a hexagon bolt in position whilst the nut is tightened

  • Manufactured from ductile iron

  • Hot dip galvanised as standard

  • 5 to 1 factor of safety

  • Lloyds register approved
