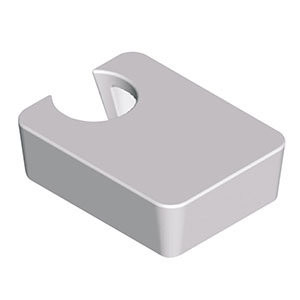

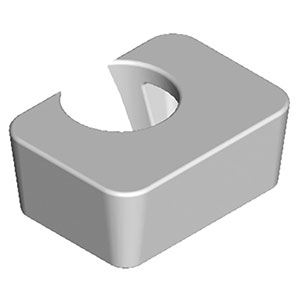

Type BG - Thick - Packer

by Beam Clamps
From £0.70
From £0.84
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
M8 14 x 22mmBG1G0892-88-38
£0.70
£0.84
cat: £0.70
cat: £0.84
253
M8 24 x 22mmBG2G0892-88-46
£1.04
£1.25
cat: £1.04
cat: £1.25
100
M10 18 x 28mmBG1G1092-88-53
£0.99
£1.19
cat: £0.99
cat: £1.19
36
M10 30 x 28mmBG2G1092-88-61
£1.69
£2.03
cat: £1.69
cat: £2.03
119
M12 39 x 30mmBG2G1292-89-11
£2.26
£2.71
cat: £2.26
cat: £2.71
13
M16 29 x 35mmBG1G1692-89-29
£1.61
£1.93
cat: £1.61
cat: £1.93
20
M16 49 x 35mmBG2G1692-89-37
£3.32
£3.98
cat: £3.32
cat: £3.98
18
M20 58 x 43mmBG2G2092-89-52
£6.38
£7.66
cat: £6.38
cat: £7.66
25
M24 45 x 55mmBG1G2492-89-60
£8.79
£10.55
cat: £8.79
cat: £10.55
25
M24 77 x 55mmBG2G2492-89-78
£11.96
£14.35
cat: £11.96
cat: £14.35
20

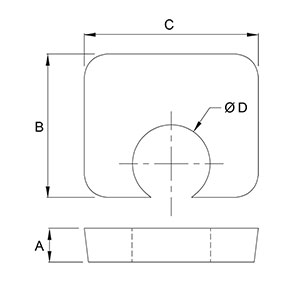

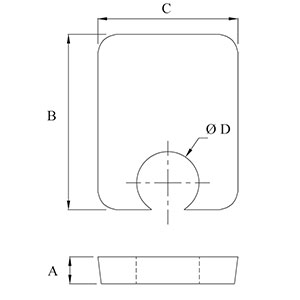

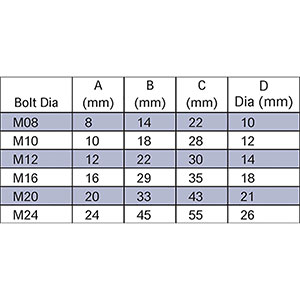

Technical Specifications
ProductBoltABCD
CodeDia(mm)(mm)(mm)Dia
BG1 G08M088142210
BG2 G08M088242210
BG1 G10M1010182812
BG2 G10M1010302812
BG1 G12M1212223014
BG2 G12M1212393014
BG1 G16M1616293518
BG2 G16M1616493518
BG1 G20M2020334321
BG2 G20M2020584321
BG1 G24M2424455526
BG2 G24M2424775526

Product Description

BG1 products are used to provide support to the underside of types BA and BB where required, ensuring the fixings fit correctly onto the flange. BG2 products are used to provide support to the underside of the types BE1, BE2 and BK1, where required to ensure the fixings fits correctly onto the flange. BG2 are similar to the BG1 but are longer back to front, providing support for the products which reach further back onto the location plate.

Features

  • BG1 products are used to provide support to the underside of types BA and BB where required, ensuring the fixings fit correctly onto the flange

  • BG2 products are used to provide support to the underside of the types BE1, BE2 and BK1, where required to ensure the fixings fits correctly onto the flange

  • BG2 are similar to the BG1 but are longer back to front, providing support for the products which reach further back onto the location plate
