Type BF - MiddleType BF - MiddleType BF - MiddleType BF - MiddleType BF - MiddleType BF - Middle

Type BF - Middle - Packer

by Beam Clamps
From £0.56
From £0.67
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
M8 14 x 22mmBF1G0892-86-97
£0.56
£0.67
cat: £0.56
cat: £0.67
457
M8 24 x 22mmBF2G0892-87-05
£0.96
£1.15
cat: £0.96
cat: £1.15
101
M10 18 x 28mmBF1G1092-87-13
£0.65
£0.78
cat: £0.65
cat: £0.78
46
M10 30 x 28mmBF2G1092-87-21
£1.63
£1.96
cat: £1.63
cat: £1.96
141
M16 29 x 35mmBF1G1692-87-70
£0.86
£1.03
cat: £0.86
cat: £1.03
2
M16 49 x 35mmBF2G1692-87-88
£2.35
£2.82
cat: £2.35
cat: £2.82
59
M20 33 x 43mmBF1G2092-87-96
£1.69
£2.03
cat: £1.69
cat: £2.03
100
M20 58 x 43mmBF2G2092-88-04
£2.74
£3.29
cat: £2.74
cat: £3.29
46
M24 45 x 55mmBF1G2492-88-12
£3.65
£4.38
cat: £3.65
cat: £4.38
40
M24 77 x 55mmBF2G2492-88-20
£6.67
£8.00
cat: £6.67
cat: £8.00
30

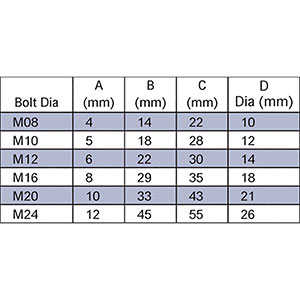

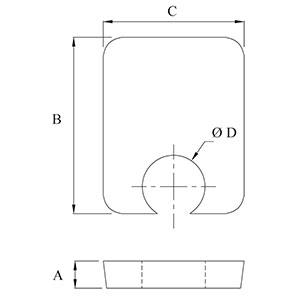

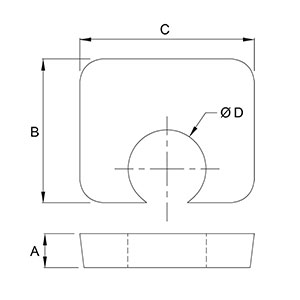

Technical Specifications
ProductBoltABCD
CodeDia(mm)(mm)(mm)Dia
BF1 G08M084142210
BF2 G08M084242210
BF1 G10M105182812
BF2 G10M105302812
BF1 G12M126223014
BF2 G12M126393014
BF1 G16M168293518
BF2 G16M168493518
BF1 G20M2010334321
BF2 G20M2010584321
BF1 G24M2412455526
BF2 G24M2412775526

Product Description

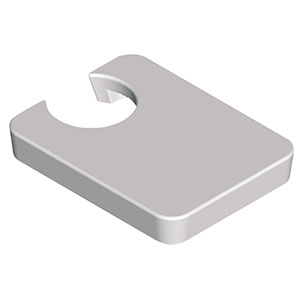

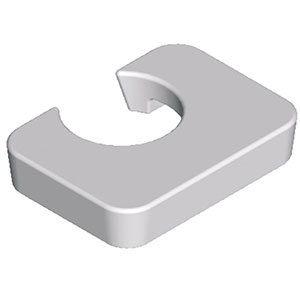

BF1 - are used to provide support to the underside of types BA and BB where required, ensuring the fixings fit correctly onto the flange. BF2 - are used to provide support to the underside of the types BE1, BE2 and BK1, where required to ensure the fixings fits correctly onto the flange. BF2 are similar to BF1 but are longer back to front, provding support for the products which reach further back onto the location plate.

Features

  • BF1 - are used to provide support to the underside of types BA and BB where required, ensuring the fixings fit correctly onto the flange

  • BF2 - are used to provide support to the underside of the types BE1, BE2 and BK1, where required to ensure the fixings fits correctly onto the flange

  • BF2 are similar to BF1 but are longer back to front, provding support for the products which reach further back onto the location plate
