Type BB - Non Adjustable - Flat Top

by Beam Clamps
From £1.73
From £2.08
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
M10 x 5mm BB2G1092-85-31
£1.73
£2.08
cat: £1.73
cat: £2.08
392
M20 x 7mm BB1G2092-86-14
£5.85
£7.02
cat: £5.85
cat: £7.02
4
M24 x 9mm BB1G2492-86-63
£11.80
£14.16
cat: £11.80
cat: £14.16
20
M24 x 16mm BB3G2492-86-89
£11.80
£14.16
cat: £11.80
cat: £14.16
16

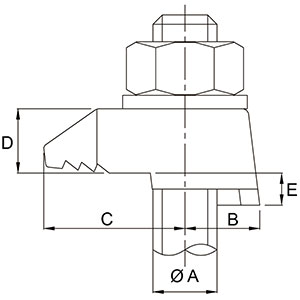

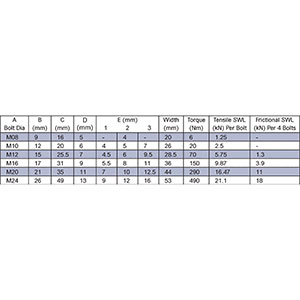

Technical Specifications
ProductABCDE (mm)WidthTorque
CodeBolt Dia(mm)(mm)(mm)123(mm)(Nm)
BB G10M101220114572620
BB G08M089169-4-206
BB G12M121525.5134.569.528.570
BB G16M161731175.581136150
BB G20M2021352171012.544290
BB G24M242649259121653490

Product Description

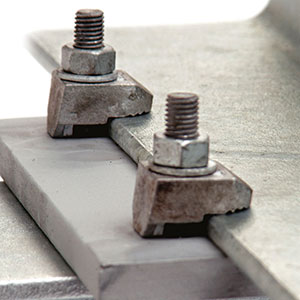

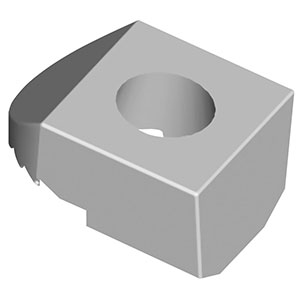

The type BB is designed with a flat top to allow a nut or bolt head to be tightened down onto it. The BB is suitable for parallel flanges and tapered flanges up to a 8 degrees slope. Manufactured from ductile iron. Hot dip galvanised as standard. 5 to 1 factor of safety. Lloyds register approved.

Features

  • The type BB is designed with a flat top to allow a nut or bolt head to be tightened down onto it

  • The BB is suitable for parallel flanges and tapered flanges up to a 8 degrees slope

  • Manufactured from ductile iron

  • Hot dip galvanised as standard

  • 5 to 1 factor of safety

  • Lloyds register approved
