Type BA - Non Adjustable
Type BA - Non Adjustable
Type BA - Non Adjustable
Type BA - Non Adjustable
Chevron Down
Type BA - Non AdjustableType BA - Non AdjustableType BA - Non AdjustableType BA - Non Adjustable

Type BA - Non Adjustable - Recessed Top

by Beam Clamps
From £0.69
From £0.83
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
M8 x 4mm BA2G0892-83-41
£0.69
£0.83
cat: £0.69
cat: £0.83
12
M10 x 7mm BA3G1092-83-74
£1.35
£1.62
cat: £1.35
cat: £1.62
81
M20 x 7mm BA1G2092-84-57
£3.91
£4.69
cat: £3.91
cat: £4.69
67
M24 x 9mm BA1G2492-84-81
£9.93
£11.92
cat: £9.93
cat: £11.92
184
M24 x 12mm BA2G2492-84-99
£9.93
£11.92
cat: £9.93
cat: £11.92
8
M24 x 16mm BA3G2492-85-07
£9.93
£11.92
cat: £9.93
cat: £11.92
12

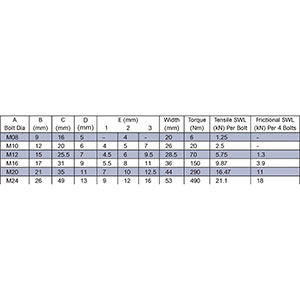

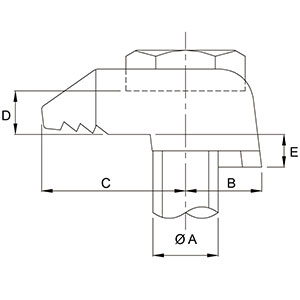

Technical Specifications
ProductABCDE (mm)WIDTHTORQUE
CodeBolt Dia(mm)(mm)(mm)123(mm)(Nm)
BA G08M089165-4-206
BA G10M10122064572620
BA G12M121525.574.569.528.570
BA G16M16173195.581136150
BA G20M2021351171012.544290
BA G24M242647139121653490

Product Description

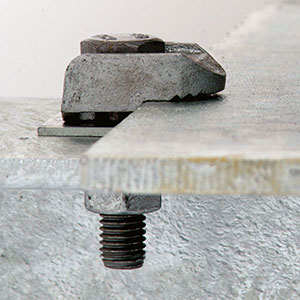

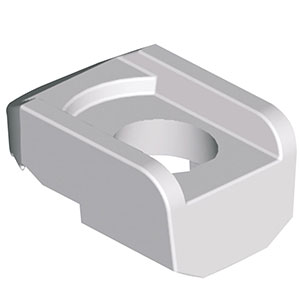

The type BA is a recessed fixing to hold the head of a grade 8.8 hexagon bolt whilst the nut is tightened. The BA is suitable for parallel flanges with up to 8 degrees slope. Manufactured from ductile iron. Hot dip galvanised as standard. 5 to 1 factor of safety. Lloyds register approved.

Features

  • The type BA is a recessed fixing to hold the head of a grade 8.8 hexagon bolt whilst the nut is tightened

  • The BA is suitable for parallel flanges with up to 8 degrees slope

  • Manufactured from ductile iron

  • Hot dip galvanised as standard

  • 5 to 1 factor of safety

  • Lloyds register approved
