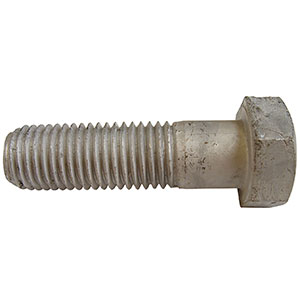

M20 - Galv - 8.8 Grade DIN931 High Tensile Bolt

M20 - GALV Bolt - 8.8 Grade - DIN931

by Hot Dipped Galv

_{From £57}^.12

_{From £68}^.54

per 100

Size/Model No.	Stock No.	Price per hundred	Available Stock	Quantity

60mm	91-56-60	_£57^.12 _£68^.54 _{cat: £57}^.12 _{cat: £68}^.54	240
65mm	91-56-78	_£76^.00 _£91^.20 _{cat: £76}^.00 _{cat: £91}^.20	12
70mm	91-56-86	_£76^.18 _£91^.42 _{cat: £76}^.18 _{cat: £91}^.42	33
75mm	91-56-94	_£63^.71 _£76^.45 _{cat: £63}^.71 _{cat: £76}^.45	185
80mm	91-57-02	_£71^.50 _£85^.80 _{cat: £71}^.50 _{cat: £85}^.80	5
90mm	91-57-10	_£101^.40 _£121^.68 _{cat: £101}^.40 _{cat: £121}^.68	19
100mm	91-57-28	_£96^.32 _£115^.58 _{cat: £96}^.32 _{cat: £115}^.58	42
110mm	91-57-36	_£88^.05 _£105^.66 _{cat: £88}^.05 _{cat: £105}^.66	10
120mm	91-57-44	_£101^.97 _£122^.36 _{cat: £101}^.97 _{cat: £122}^.36	15
130mm	91-57-51	_£127^.52 _£153^.02 _{cat: £127}^.52 _{cat: £153}^.02	5
140mm	91-58-01	_£134^.02 _£160^.82 _{cat: £134}^.02 _{cat: £160}^.82	10
150mm	91-58-19	_£138^.57 _£166^.28 _{cat: £138}^.57 _{cat: £166}^.28	39
160mm	91-58-27	_£147^.54 _£177^.05 _{cat: £147}^.54 _{cat: £177}^.05	30
170mm	91-58-35	_£237^.72 _£285^.26 _{cat: £237}^.72 _{cat: £285}^.26	45
180mm	91-58-43	_£207^.87 _£249^.44 _{cat: £207}^.87 _{cat: £249}^.44	4 days
190mm	91-58-50	_£232^.71 _£279^.25 _{cat: £232}^.71 _{cat: £279}^.25	8
200mm	91-58-68	_£204^.95 _£245^.94 _{cat: £204}^.95 _{cat: £245}^.94	5
210mm	165-34-01	_£395^.46 _£474^.55 _{cat: £395}^.46 _{cat: £474}^.55	4 days
220mm	91-58-76	_£247^.62 _£297^.14 _{cat: £247}^.62 _{cat: £297}^.14	1
240mm	91-58-84	_£473^.20 _£567^.84 _{cat: £473}^.20 _{cat: £567}^.84	2
250mm	183-27-73	_£775^.71 _£930^.85 _{cat: £775}^.71 _{cat: £930}^.85	4 days
260mm	91-58-92	_£206^.40 _£247^.68 _{cat: £206}^.40 _{cat: £247}^.68	4 days
280mm	91-59-00	_£346^.45 _£415^.74 _{cat: £346}^.45 _{cat: £415}^.74	2
300mm	91-59-18	_£456^.30 _£547^.56 _{cat: £456}^.30 _{cat: £547}^.56	8
350mm	172-94-25	_£680^.90 _£817^.08 _{cat: £680}^.90 _{cat: £817}^.08	4 days
380mm	172-94-17	_£680^.90 _£817^.08 _{cat: £680}^.90 _{cat: £817}^.08	4 days

Product Description

ParkerTools stock a wide range of M20 part threaded steel bolts in various metal types and grades and are specialist suppliers of fixings and fasteners to industry and DIY users. We are also leading stockists of CE approved structural fixings and fasteners. No matter whether you are looking for fixings to hold together a steel frame or simply bolt together two bits of wood, ParkerTools can supply the all the fixings and fasteners you will need to get the job done.

Features

Hexagon head

Galvanised

High tensile steel

Part threaded

Grade 8.8

Available in bright zinc plated

DIN931

Specification

Size:60 - 300mm
Thread:M20
Finish:Galvanised

Dimensions

p : 2.5 : Pitch

b : 46 : Thread Length <125mm

b : 52 : Thread Length 125 - 200mm

b : 65 : Thread Length >200m

k : 12.5 : Head Height

AF : 30 : Width Across Flat
