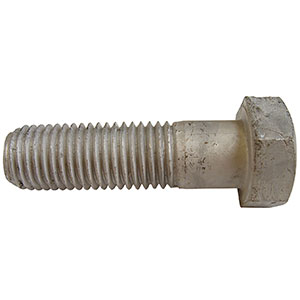

M10 - Galv - 8.8 Grade DIN931 High Tensile Bolt

M10 - GALV Bolt - 8.8 Grade - DIN931

by Hot Dipped Galv

_{From £12}^.62

_{From £15}^.14

per 100

Size/Model No.	Stock No.	Price per hundred	Available Stock	Quantity

40mm	91-48-20	_£16^.85 _£20^.22 _{cat: £16}^.85 _{cat: £20}^.22	152
45mm	91-48-38	_£20^.79 _£24^.95 _{cat: £20}^.79 _{cat: £24}^.95	240
50mm	91-48-46	_£14^.14 _£16^.97 _{cat: £14}^.14 _{cat: £16}^.97	100
55mm	91-48-53	_£21^.22 _£25^.46 _{cat: £21}^.22 _{cat: £25}^.46	8
60mm	91-48-61	_£12^.62 _£15^.14 _{cat: £12}^.62 _{cat: £15}^.14	26
65mm	91-48-79	_£21^.23 _£25^.48 _{cat: £21}^.23 _{cat: £25}^.48	100
70mm	91-48-87	_£17^.93 _£21^.52 _{cat: £17}^.93 _{cat: £21}^.52	200
80mm	91-49-03	_£25^.14 _£30^.17 _{cat: £25}^.14 _{cat: £30}^.17	158
90mm	91-49-11	_£20^.55 _£24^.66 _{cat: £20}^.55 _{cat: £24}^.66	39
100mm	91-49-29	_£31^.03 _£37^.24 _{cat: £31}^.03 _{cat: £37}^.24	52
110mm	91-49-37	_£23^.09 _£27^.71 _{cat: £23}^.09 _{cat: £27}^.71	107
120mm	91-49-45	_£36^.56 _£43^.87 _{cat: £36}^.56 _{cat: £43}^.87	155
130mm	91-49-52	_£50^.70 _£60^.84 _{cat: £50}^.70 _{cat: £60}^.84	12 days
140mm	91-49-60	_£26^.55 _£31^.86 _{cat: £26}^.55 _{cat: £31}^.86	11
150mm	91-49-78	_£27^.95 _£33^.54 _{cat: £27}^.95 _{cat: £33}^.54	54
160mm	91-49-86	_£124^.94 _£149^.93 _{cat: £124}^.94 _{cat: £149}^.93	12 days
170mm	91-49-94	_£77^.17 _£92^.60 _{cat: £77}^.17 _{cat: £92}^.60	5
180mm	91-50-58	_£76^.71 _£92^.05 _{cat: £76}^.71 _{cat: £92}^.05	12 days
190mm	91-50-66	_£84^.50 _£101^.40 _{cat: £84}^.50 _{cat: £101}^.40	6
200mm	91-50-74	_£96^.16 _£115^.39 _{cat: £96}^.16 _{cat: £115}^.39	10
220mm	182-12-06	_£65^.51 _£78^.61 _{cat: £65}^.51 _{cat: £78}^.61	12 days

Product Description

ParkerTools stock a wide range of Galvanised M10 part threaded steel bolts in various metal types and grades and are specialist suppliers of fixings and fasteners to industry and DIY users. We are also leading stockists of CE approved structural fixings and fasteners. No matter whether you are looking for fixings to hold together a steel frame or simply bolt together two bits of wood, ParkerTools can supply the all the fixings and fasteners you will need to get the job done.

Features

Hexagon head

Galvanised

High tensile steel

Part threaded

Grade 8.8

Available in bright zinc plated

DIN931

Specification

Size:40 - 200mm
Finish:Galvanised
Thread:M10

Dimensions

p : 1.5 : Pitch

b : 26 : Thread Length <125mm

b : 32 : Thread Length 125 - 200mm

b : 45 : Thread Length >200m

k : 6.4 : Head Height

AF : 17 : Width Across Flat
