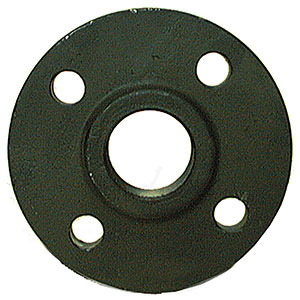

Slip On 16/5 BS4504 - Pipe Fittings - Flange
by Marla
From £12.89
From £15.47
eachAvailable for Collection or Delivery
Store Pickup
Collect
Wed Nov 13
th FREE
Standard
As soon as
Thu Nov 14
th FREE
Pre-Noon
As soon as
Thu Nov 14
th £10.00
Pre-10:30am
As soon as
Thu Nov 14
th £15.00
Pre-9:00am
As soon as
Thu Nov 14
th £30.00
Free delivery: Thu Nov 14th
Fastest delivery: 9am Thu Nov 14th
Secure Transactions
Product Description
Designed to be slightly larger in diameter than the pipe. Fits on the end of the pipe and is welded into place.
Specification
2" Nominal Bore - 60.3mm Pipe OD - 165mm Outside Diameter - 125mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 4 Bolt Holes - 18mm Flange Thickness - Boss Diameter Top 61.5mm Bottom 84mm - Height 28mm
2 1/2" Nominal Bore - 76.1mm Pipe OD - 185mm Outside Diameter - 145mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 8 Bolt Holes - 18mm Flange Thickness - Boss Diameter Top 77.5mm Bottom 104mm - Height 32mm
3" Nominal Bore - 88.9mm Pipe OD - 200mm Outside Diameter - 160mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 8 Bolt Holes - 20mm Flange Thickness - Boss Diameter Top 90.5mm Bottom 118mm - Height 34mm
4" Nominal Bore - 114.3mm Pipe OD - 220mm Outside Diameter - 180mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 8 Bolt Holes - 20mm Flange Thickness - Boss Diameter Top 116.0mm Bottom 140mm - Height 40mm
5" Nominal Bore - 139.7mm Pipe OD - 250mm Outside Diameter - 210mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 8 Bolt Holes - 22mm Flange Thickness - Boss Diameter Top 141.5mm Bottom 168mm - Height 44mm
6" Nominal Bore - 165.1mm Pipe OD - 285mm Outside Diameter - 240mm Bolt Circle Diameter - 22mm Bolt Hole to suit M20 Bolts - 8 Bolt Holes - 22mm Flange Thickness - Boss Diameter Top 170.5mm Bottom 194mm - Height 44mm
