Product Description

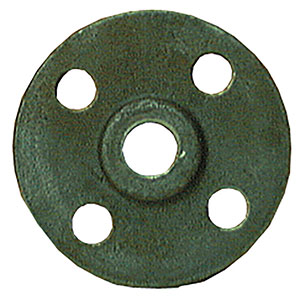

Bossed Screwed Table D/E BS10 - Pipe Fittings - Flange Self Colour (Black)

Specification

  • 1/2" Nominal Bore - 21.3mm Pipe OD - 95.3mm Outside Diameter - 66.7mm Bolt Circle Diameter - 14mm Bolt Hole to suit M12 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 33.3mm Bottom 38.1mm - Height 9.5mm
  • 3/4" Nominal Bore - 26.9mm Pipe OD - 101.6mm Outside Diameter - 73.0mm Bolt Circle Diameter - 14mm Bolt Hole to suit M12 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 38.1mm Bottom 44.5mm - Height 11.1mm
  • 1" Nominal Bore - 33.7mm Pipe OD - 114.3mm Outside Diameter - 82.6mm Bolt Circle Diameter - 14mm Bolt Hole to suit M12 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 47.6mm Bottom 57.9mm - Height 11.1mm
  • 1 1/4" Nominal Bore - 42.5mm Pipe OD - 120.7mm Outside Diameter - 87.3mm Bolt Circle Diameter - 14mm Bolt Hole to suit M12 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 55.6mm Bottom 57.9mm - Height 11.1mm
  • 1 1/2" Nominal Bore - 48.3mm Pipe OD - 133.4mm Outside Diameter - 98.4mm Bolt Circle Diameter - 14mm Bolt Hole to suit M12 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 61.9mm Bottom 69.9mm - Height 12.7mm
  • 2" Nominal Bore - 60.3mm Pipe OD - 152.4mm Outside Diameter - 114.3mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 74.6mm Bottom 79.4mm - Height 12.7mm
  • 2 1/2" Nominal Bore - 76.1mm Pipe OD - 165.1mm Outside Diameter - 127.0mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 90.5mm Bottom 92.9mm - Height 15.9mm
  • 3" Nominal Bore - 88.9mm Pipe OD - 184.2mm Outside Diameter - 146.1mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 106.4mm Bottom 111.9mm - Height 15.9mm
  • 5" Nominal Bore - 139.7mm Pipe OD - 254.0mm Outside Diameter - 209.6mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 8 Bolt Holes - 14.3mm Flange Thickness - Boss Diameter Top 160.3mm Bottom 171.4mm - Height 19.0mm
