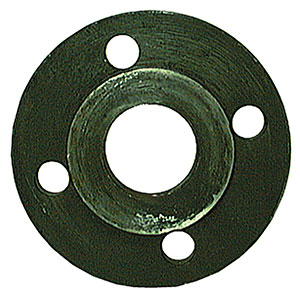

Plate PN16 BS4504 - Pipe Fittings - Flange Selg Colour (Black)
by Marla
From £4.82
From £5.78
eachAvailable for Collection or Delivery
Store Pickup
Collect
Wed Nov 13
th FREE
Standard
As soon as
Thu Nov 14
th FREE
Pre-Noon
As soon as
Thu Nov 14
th £10.00
Pre-10:30am
As soon as
Thu Nov 14
th £15.00
Pre-9:00am
As soon as
Thu Nov 14
th £30.00
Free delivery: Thu Nov 14th
Fastest delivery: 9am Thu Nov 14th
Secure Transactions
Product Description
Plate PN16 BS4504 - Pipe Fittings - Flange Selg Colour (Black)
Specification
1 1/4" Nominal Bore - 43.5mm Pipe OD - 140mm Outside Diameter - 100mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 4 Bolt Holes - 18mm Flange Thickness
1 1/2" Nominal Bore - 49.5mm Pipe OD - 150mm Outside Diameter - 110mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 4 Bolt Holes - 18mm Flange Thickness
2" Nominal Bore - 61.5mm Pipe OD - 165mm Outside Diameter - 125mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 4 Bolt Holes - 20mm Flange Thickness
2 1/2" Nominal Bore - 77.5mm Pipe OD - 185mm Outside Diameter - 145mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 4 Bolt Holes - 20mm Flange Thickness
3" Nominal Bore - 90.5mm Pipe OD - 200mm Outside Diameter - 160mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 8 Bolt Holes - 20mm Flange Thickness
4" Nominal Bore - 116.0mm Pipe OD - 220mm Outside Diameter - 180mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 8 Bolt Holes - 22mm Flange Thickness
6" Nominal Bore - 170.5mm Pipe OD - 285mm Outside Diameter - 240mm Bolt Circle Diameter - 22mm Bolt Hole to suit M20 Bolts - 8 Bolt Holes - 24mm Flange Thickness
10" Nominal Bore - 276.5mm Pipe OD - 405m Outside Diameter - 355mm Bolt Circle Diameter - 26mm Bolt Hole to suit M24 Bolts - 8 Bolt Holes - 29mm Flange Thickness
