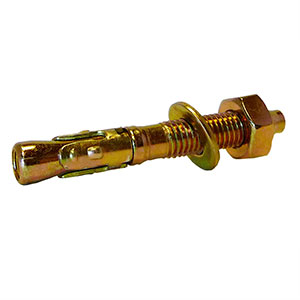

JCP Through Bolt - Standard - Zinc Plated Yellow Passivated

by JCP

_{From £8}^.79

_{From £10}^.55

per 100

Size/Model No.	Stock No.	Price per hundred	Available Stock	Quantity

M6 x 45mm TB06045	15-34-29	_£9^.05 _£10^.86 _{cat: £9}^.05 _{cat: £10}^.86	55
M6 x 55mm TB06055	15-34-37	_£9^.60 _£11^.52 _{cat: £9}^.60 _{cat: £11}^.52	14
M6 x 85mm TB06085	28-32-00	_£8^.79 _£10^.55 _{cat: £8}^.79 _{cat: £10}^.55	440
M8 x 50mm TB08050	15-33-04	_£9^.64 _£11^.57 _{cat: £9}^.64 _{cat: £11}^.57	354
M8 x 65mm TB08065	15-33-12	_£11^.14 _£13^.37 _{cat: £11}^.14 _{cat: £13}^.37	135
M8 x 80mm TB08080	155-05-08	_£11^.68 _£14^.02 _{cat: £11}^.68 _{cat: £14}^.02	178
M8 x 100mm TB08100	155-05-32	_£13^.36 _£16^.03 _{cat: £13}^.36 _{cat: £16}^.03	260
M8 x 130mm TB08130	155-05-40	_£15^.56 _£18^.67 _{cat: £15}^.56 _{cat: £18}^.67	155
M10 x 65mm TB10065	15-33-53	_£15^.86 _£19^.03 _{cat: £15}^.86 _{cat: £19}^.03	3 days
M10 x 75mm TB10075	47-12-01	_£17^.29 _£20^.75 _{cat: £17}^.29 _{cat: £20}^.75	153
M10 x 90mm TB10090	15-33-61	_£18^.36 _£22^.03 _{cat: £18}^.36 _{cat: £22}^.03	333
M10 x 100mm TB10100	187-15-08	_£19^.79 _£23^.75 _{cat: £19}^.79 _{cat: £23}^.75	209
M10 x 120mm TB10120	15-33-79	_£22^.75 _£27^.30 _{cat: £22}^.75 _{cat: £27}^.30	1000+
M10 x 150mm TB10150	194-65-24	_£27^.26 _£32^.71 _{cat: £27}^.26 _{cat: £32}^.71	94
M10 x 175mm TB10175	193-88-36	_£32^.29 _£38^.75 _{cat: £32}^.29 _{cat: £38}^.75	50
M12 x 80mm TB12080	15-33-87	_£26^.86 _£32^.23 _{cat: £26}^.86 _{cat: £32}^.23	941
M12 x 100mm TB12100	15-33-95	_£29^.43 _£35^.32 _{cat: £29}^.43 _{cat: £35}^.32	1000+
M12 x 120mm TB12120	15-34-03	_£33^.29 _£39^.95 _{cat: £33}^.29 _{cat: £39}^.95	1000+
M12 x 140mm TB12140	15-34-11	_£36^.54 _£43^.85 _{cat: £36}^.54 _{cat: £43}^.85	1000+
M12 x 180mm TB12180	155-05-57	_£48^.93 _£58^.72 _{cat: £48}^.93 _{cat: £58}^.72	1000+
M16 x 105mm TB16105	15-34-45	_£53^.79 _£64^.55 _{cat: £53}^.79 _{cat: £64}^.55	894
M16 x 125mm TB16125	15-34-52	_£60^.75 _£72^.90 _{cat: £60}^.75 _{cat: £72}^.90	1000+
M16 x 150mm TB16150	92-09-26	_£60^.00 _£72^.00 _{cat: £60}^.00 _{cat: £72}^.00	1000+
M16 x 175mm TB16175	51-18-65	_£82^.35 _£98^.82 _{cat: £82}^.35 _{cat: £98}^.82	1000+
M16 x 220mm TB16220	162-73-48	_£105^.58 _£126^.70 _{cat: £105}^.58 _{cat: £126}^.70	1000+
M20 x 130mm TB20130	40-45-74	_£98^.10 _£117^.72 _{cat: £98}^.10 _{cat: £117}^.72	236
M20 x 160mm TB20160	15-34-60	_£123^.69 _£148^.43 _{cat: £123}^.69 _{cat: £148}^.43	328
M20 x 215mm TB20215	42-46-14	_£158^.69 _£190^.43 _{cat: £158}^.69 _{cat: £190}^.43	1000+
M24 x 180mm TB24180	155-05-65	_£225^.89 _£271^.07 _{cat: £225}^.89 _{cat: £271}^.07	90
M24 x 260mm TB24260	155-05-73	_£293^.48 _£352^.18 _{cat: £293}^.48 _{cat: £352}^.18	36

Technical Specifications

	THREAD	HOLE	FASTENS	MIN. HOLE	SUPPLIER
SIZE	LENGTH	SIZE	MATERIAL	DEPTH	REFERENCE
M6 x 45mm	20 mm	6 mm	5 mm	35 mm	T6045
M6 x 55mm	30 mm	6 mm	15 mm	35 mm	T6055
M6 x 85mm	20 mm	6 mm	45 mm	35 mm	T6085
M8 x 50mm	20 mm	8 mm	5 mm	40 mm	T8050
M8 x 65mm	35 mm	8 mm	20 mm	40 mm	T8065
M10 x 65mm	30 mm	10 mm	8 mm	50 mm	T10065
M10 x 90mm	55 mm	10 mm	33 mm	50 mm	T10090
M10 x 120mm	85 mm	10 mm	63 mm	50 mm	T10120
M12 x 100mm	50 mm	12 mm	25 mm	65 mm	T12100
M12 x 120mm	70 mm	12 mm	45 mm	65 mm	T12120
M12 x 140mm	80 mm	12 mm	65 mm	65 mm	T12140
M16 x 125mm	65 mm	16 mm	30 mm	85 mm	T16125
M16 x 175mm	85 mm	16 mm	80 mm	85 mm	T16175
M20 x 130mm	50 mm	20 mm	20 mm	100 mm	T20130
M20 x 160mm	50 mm	20 mm	50 mm	100 mm	T20160
M20 x 215mm	50 mm	20 mm	105 mm	100 mm	T20215

Product Description

The throughbolt is the ultimate through fixing with the hole diameter as the bolt diameter. It is ideal for bolting in place awkward fixtures without the need for marking out, removing and repositioning. It is a torque-controlled anchor suitable for use in concrete over C20/25 strength.

Features

Fast and Secure Installation

Three way Expansion Sleeve

Reaction to Fire Class A1

Through Fixing

Zinc Plated Minimum 5µm

Wide Range of Sizes

Finish: Zinc and Yellow Plated (ZYP) Material: Steel
